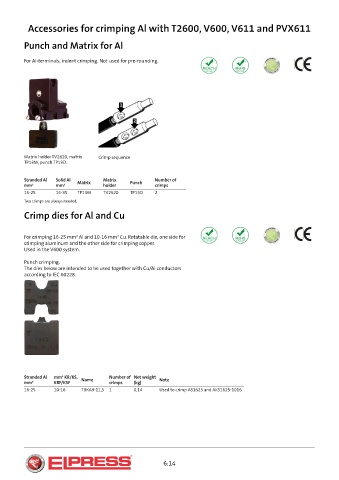

Accessories for crimping Al with T2600, V600, V611 and PVX611

Punch and Matrix for Al

For Al-terminals, indent crimping. Not used for pre-rounding.

Matrix holder TV2620, matrix Crimp sequence
TP13M, punch TP13D.

Stranded Al Solid Al Matrix Matrix Punch Number of
mm² mm² holder crimps
16-25 16-35 TP13M TV2620 TP13D 2
Two crimps are always needed.

Crimp dies for Al and Cu

For crimping 16-25 mm² Al and 10-16 mm² Cu. Rotatable die, one side for
crimping aluminum and the other side for crimping copper.
Used in the V600 system.

Punch crimping.
The dies below are intended to be used together with Cu/Al conductors
according to IEC 60228.

Stranded Al mm² KR/KS, Name Number of Net weight Note
mm² KRF/KSF crimps (kg)
16-25 10-16 TBKA9-11,5 1 0,14 Used to crimp AS1625 and AKS1625-1016

6:14
