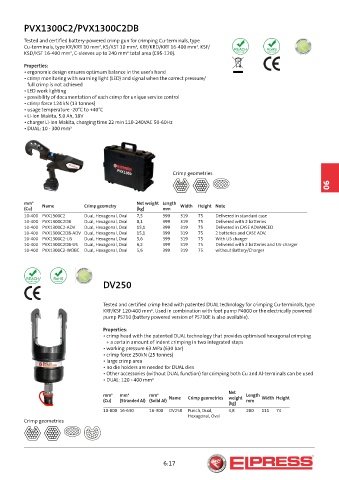

PVX1300C2/PVX1300C2DB

Tested and certified battery-powered crimp gun for crimping Cu-terminals, type
Cu-terminals, type KR/KRT 10 mm², KS/KST 10 mm², KRF/KRD/KRT 16-400 mm², KSF/
KSD/KST 16-400 mm², C-sleeves up to 240 mm² total area (C95-120).

Properties:
• ergonomic design ensures optimum balance in the user’s hand
• crimp monitoring with warning light (LED) and signal when the correct pressure/
full crimp is not achieved
• LED work lighting
• possibility of documentation of each crimp for unique service control
• crimp force 124 kN (13 tonnes)
• usage temperature -20°C to +40°C
• Li-Ion Makita, 5.0 Ah, 18V
• charger Li-Ion Makita, charging time 22 min 110-240VAC 50-60Hz
• DUAL: 10 - 300 mm²

Crimp geometries

06

mm² Name Crimp geometry Net weight Length Width Height Note
(Cu) (kg) mm
10-400 PVX1300C2 Dual, Hexagonal, Oval 7,5 399 319 75 Delivered in standard case
10-400 PVX1300C2DB Dual, Hexagonal, Oval 8,1 399 319 75 Delivered with 2 batteries
10-400 PVX1300C2-ADV Dual, Hexagonal, Oval 15,1 399 319 75 Delivered in CASE ADVANCED
10-400 PVX1300C2DB-ADV Dual, Hexagonal, Oval 15,1 399 319 75 2 batteries and CASE ADV.
10-400 PVX1300C2-US Dual, Hexagonal, Oval 5,6 399 319 75 With US charger
10-400 PVX1300C2DB-US Dual, Hexagonal, Oval 6,2 399 319 75 Delivered with 2 batteries and US-charger
10-400 PVX1300C2-WOBC Dual, Hexagonal, Oval 5,6 399 319 75 without Battery/Charger

DV250

Tested and certified crimp head with patented DUAL technology for crimping Cu-terminals, type
KRF/KSF 120-400 mm². Used in combination with foot pump P4000 or the electrically powered
pump PS710 (battery powered version of PS710E is also available).

Properties:
• crimp head with the patented DUAL technology that provides optimised hexagonal crimping
+ a certain amount of indent crimping in two integrated steps
• working pressure 63 MPa (630 bar)
• crimp force 250kN (25 tonnes)
• large crimp area
• no die holders are needed for DUAL dies
• Other accessories (without DUAL function) for crimping both Cu and Al-terminals can be used
• DUAL: 120 - 400 mm²

Net
mm² mm² mm² Name Crimp geometries weight Length Width Height
(Cu) (Stranded Al) (Solid Al) mm
(kg)
10-800 16-630 16-300 DV250 Punch, Dual, 4,8 280 111 74
Hexagonal, Oval
Crimp geometries

6:17
