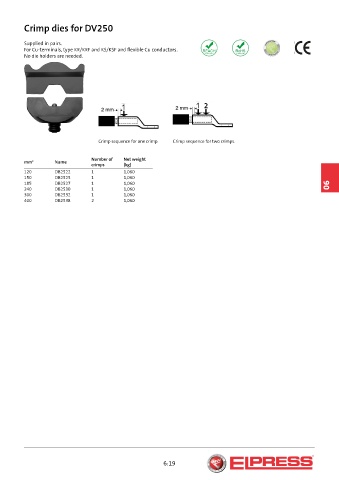

Crimp dies for DV250

Supplied in pairs.
For Cu-terminals, type KR/KRF and KS/KSF and flexible Cu conductors.
No die holders are needed.

Crimp sequence for one crimp. Crimp sequence for two crimps.

Number of Net weight
mm² Name
crimps (kg)
120 DB2522 1 1,060
150 DB2525 1 1,060
185 DB2527 1 1,060 06
240 DB2530 1 1,060
300 DB2532 1 1,060
400 DB2538 2 1,060

6:19
