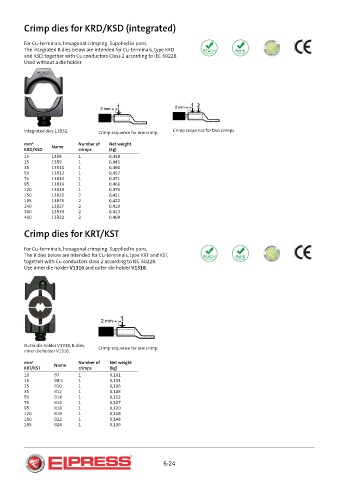

Crimp dies for KRD/KSD (integrated)

For Cu-terminals, hexagonal crimping. Supplied in pairs.
The integrated B dies below are intended for Cu-terminals, type KRD
and KSD, together with Cu conductors Class 2 according to IEC 60228.
Used without a die holder.

Integrated dies 13B32. Crimp sequence for one crimp. Crimp sequence for two crimps.

mm² Name Number of Net weight
KRD/KSD crimps (kg)
16 13B8 1 0,438
25 13B9 1 0,445
35 13B11 1 0,460
50 13B12 1 0,457
70 13B14 1 0,471
95 13B16 1 0,466
120 13B19 1 0,476
150 13B22 2 0,421
185 13B25 2 0,422
240 13B27 2 0,419
300 13B30 2 0,413
400 13B32 2 0,408

Crimp dies for KRT/KST

For Cu-terminals, hexagonal crimping. Supplied in pairs.
The B dies below are intended for Cu-terminals, type KRT and KST,
together with Cu conductors class 2 according to IEC 60228.
Use inner die holder V1316 and outer die holder V1318.

Outer die holder V1318, B-dies, Crimp sequence for one crimp.
inner die holder V1316.

mm² Name Number of Net weight
KRT/KST crimps (kg)
10 B7 1 0,101
16 B8,5 1 0,101
25 B10 1 0,106
35 B12 1 0,108
50 B14 1 0,112
70 B16 1 0,107
95 B18 1 0,120
120 B19 1 0,118
150 B22 1 0,148
185 B24 1 0,139

6:24
