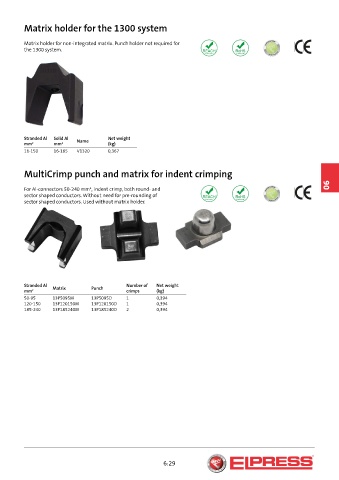

P. 139
Matrix holder for the 1300 system
Matrix holder for non-integrated matrix. Punch holder not required for
the 1300 system.
Stranded Al Solid Al Name Net weight
mm² mm² (kg)
16-150 16-185 V1320 0,367
MultiCrimp punch and matrix for indent crimping
06
For Al-connectors 50-240 mm², indent crimp, both round- and
sector shaped conductors. Without need for pre-rounding of
sector shaped conductors. Used without matrix holder.
Stranded Al Matrix Punch Number of Net weight
mm² crimps (kg)
50-95 13P5095M 13P5095D 1 0,394
120-150 13P120150M 13P120150D 1 0,394
185-240 13P185240M 13P185240D 2 0,394
6:29
