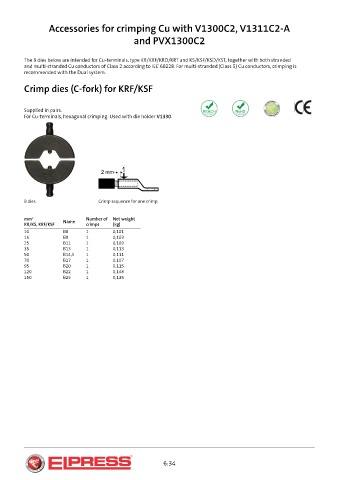

Accessories for crimping Cu with V1300C2, V1311C2-A

and PVX1300C2

The B dies below are intended for Cu-terminals, type KR/KRF/KRD/KRT and KS/KSF/KSD/KST, together with both stranded
and multi-stranded Cu conductors of Class 2 according to IEC 60228. For multi-stranded (Class 5) Cu conductors, crimping is
recommended with the Dual system.

Crimp dies (C-fork) for KRF/KSF

Supplied in pairs.
For Cu-terminals, hexagonal crimping. Used with die holder V1330.

B dies. Crimp sequence for one crimp.

mm² Name Number of Net weight
KR/KS, KRF/KSF crimps (kg)
10 B8 1 0,101
16 B9 1 0,103
25 B11 1 0,109
35 B13 1 0,113
50 B14,5 1 0,111
70 B17 1 0,107
95 B20 1 0,115
120 B22 1 0,148
150 B25 1 0,135
