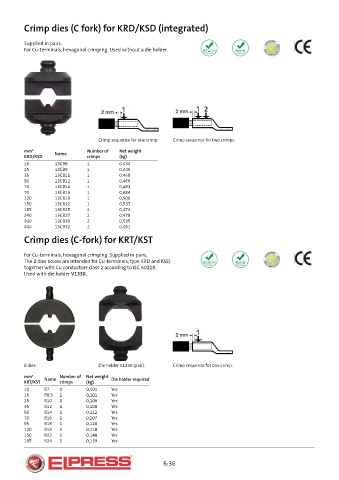

Crimp dies (C fork) for KRD/KSD (integrated)

Supplied in pairs.
For Cu-terminals, hexagonal crimping. Used without a die holder.

Crimp sequence for one crimp. Crimp sequence for two crimps.

mm² Name Number of Net weight
KRD/KSD crimps (kg)
16 13CB8 1 0,434
25 13CB9 1 0,446
35 13CB11 1 0,468
50 13CB12 1 0,466
70 13CB14 1 0,483
70 13CB16 1 0,484
120 13CB19 1 0,500
150 13CB22 1 0,537
185 13CB25 2 0,474
240 13CB27 2 0,478
300 13CB30 2 0,535
400 13CB32 2 0,491

Crimp dies (C-fork) for KRT/KST

For Cu-terminals, hexagonal crimping. Supplied in pairs.
The B dies below are intended for Cu-terminals, type KRD and KSD,
together with Cu conductors class 2 according to IEC 60228.
Used with die holder V1330.

B dies. Die holder V1330 (pair). Crimp sequence for one crimp.
mm² Name Number of Net weight Die holder required
KRT/KST crimps (kg)
10 B7 1 0,101 Yes
16 B8,5 1 0,101 Yes
25 B10 1 0,106 Yes
35 B12 1 0,108 Yes
50 B14 1 0,112 Yes
70 B16 1 0,107 Yes
95 B18 1 0,120 Yes
120 B19 1 0,118 Yes
150 B22 1 0,148 Yes
185 B24 1 0,139 Yes

6:36
