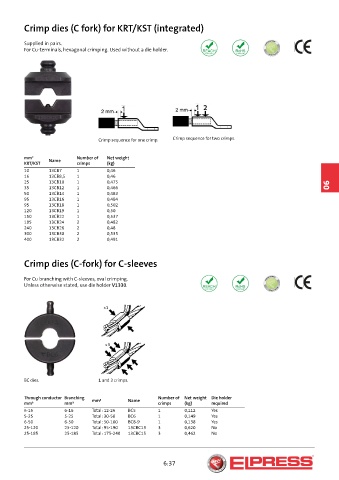

Crimp dies (C fork) for KRT/KST (integrated)

Supplied in pairs.
For Cu-terminals, hexagonal crimping. Used without a die holder.

Crimp sequence for one crimp. Crimp sequence for two crimps.

mm² Name Number of Net weight
KRT/KST crimps (kg)
10 13CB7 1 0,46
16 13CB8,5 1 0,46
25 13CB10 1 0,475 06
35 13CB12 1 0,466
50 13CB14 1 0,483
95 13CB16 1 0,484
95 13CB18 1 0,502
120 13CB19 1 0,50
150 13CB22 1 0,537
185 13CB24 2 0,482
240 13CB26 2 0,48
300 13CB30 2 0,535
400 13CB32 2 0,491

Crimp dies (C-fork) for C-sleeves
For Cu branching with C-sleeves, oval crimping.
Unless otherwise stated, use die holder V1330.

BC dies. 1 and 3 crimps.

Through conductor Branching mm² Name Number of Net weight Die holder
mm² mm² crimps (kg) required
6-16 6-16 Total: 12-26 BC5 1 0,112 Yes
5-25 5-25 Total: 30-50 BC6 1 0,149 Yes
6-50 6-50 Total: 50-100 BC8-9 1 0,138 Yes
25-120 25-120 Total: 95-190 13CBC13 3 0,620 No
25-185 25-185 Total: 175-240 13CBC15 3 0,462 No
