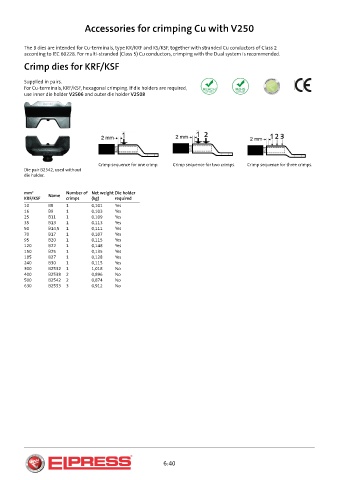

Accessories for crimping Cu with V250

The B dies are intended for Cu-terminals, type KR/KRF and KS/KSF, together with stranded Cu conductors of Class 2
according to IEC 60228. For multi-stranded (Class 5) Cu conductors, crimping with the Dual system is recommended.
Crimp dies for KRF/KSF

Supplied in pairs.
For Cu-terminals, KRF/KSF, hexagonal crimping. If die holders are required,
use inner die holder V2506 and outer die holder V2508

Crimp sequence for one crimp. Crimp sequence for two crimps. Crimp sequence for three crimps.
Die pair B2542, used without
die holder.

mm² Number of Net weight Die holder
KRF/KSF Name crimps (kg) required
10 B8 1 0,101 Yes
16 B9 1 0,103 Yes
25 B11 1 0,109 Yes
35 B13 1 0,113 Yes
50 B14,5 1 0,111 Yes
70 B17 1 0,107 Yes
95 B20 1 0,115 Yes
120 B22 1 0,148 Yes
150 B25 1 0,135 Yes
185 B27 1 0,128 Yes
240 B30 1 0,115 Yes
300 B2532 1 1,018 No
400 B2538 2 0,896 No
500 B2542 2 0,874 No
630 B2553 3 0,912 No

6:40
