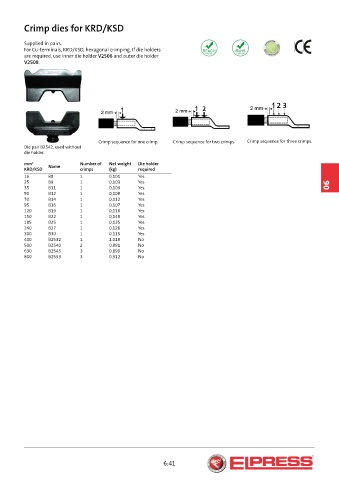

Crimp dies for KRD/KSD

Supplied in pairs.
For Cu-terminals, KRD/KSD, hexagonal crimping. If die holders
are required, use inner die holder V2506 and outer die holder
V2508.

Crimp sequence for one crimp. Crimp sequence for two crimps. Crimp sequence for three crimps.
Die pair B2542, used without
die holder.
mm² Number of Net weight Die holder
KRD/KSD Name crimps (kg) required
16 B8 1 0,101 Yes
25 B9 1 0,103 Yes 06
35 B11 1 0,109 Yes
50 B12 1 0,108 Yes
70 B14 1 0,112 Yes
95 B16 1 0,107 Yes
120 B19 1 0,118 Yes
150 B22 1 0,148 Yes
185 B25 1 0,135 Yes
240 B27 1 0,128 Yes
300 B30 1 0,115 Yes
400 B2532 1 1,018 No
500 B2540 2 0,891 No
630 B2545 3 0,899 No
800 B2553 3 0,912 No

6:41
