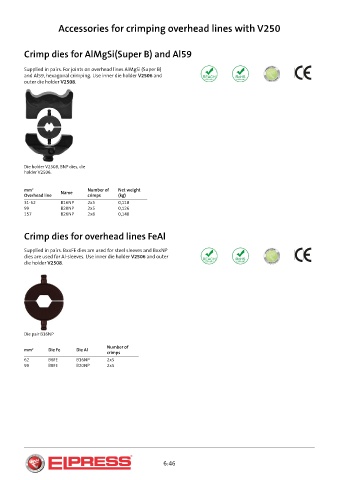

Accessories for crimping overhead lines with V250
Crimp dies for AlMgSi(Super B) and Al59
Supplied in pairs. For joints on overhead lines AlMgSi (Super B)
and Al59, hexagonal crimping. Use inner die holder V2506 and
outer die holder V2508.
Die holder V2508, BNP dies, die
holder V2506.
mm² Name Number of Net weight
Overhead line crimps (kg)
31-62 B16NP 2x5 0,118
99 B20NP 2x5 0,126
157 B26NP 2x8 0,140
Crimp dies for overhead lines FeAl
Supplied in pairs. BxxFE dies are used for steel sleeves and BxxNP
dies are used for Al-sleeves. Use inner die holder V2506 and outer
die holder V2508.
Die pair B16NP
Number of
mm² Die Fe Die Al
crimps
62 B6FE B16NP 2x5
99 B8FE B20NP 2x5
6:46
