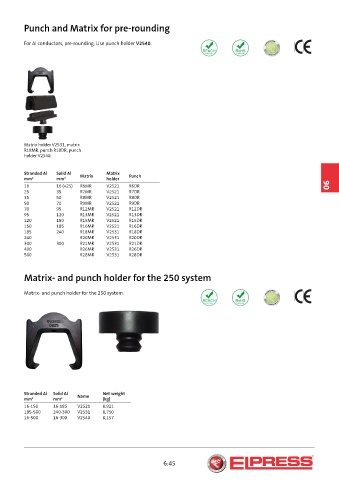

P. 155
Punch and Matrix for pre-rounding
For Al conductors, pre-rounding. Use punch holder V2540.
Matrix holder V2531, matrix
R18MR, punch R18DR, punch
holder V2540.
Stranded Al Solid Al Matrix Matrix Punch
mm² mm² holder
16 16 (+25) R6MR V2521 R6DR 06
25 35 R7MR V2521 R7DR
35 50 R8MR V2521 R8DR
50 70 R9MR V2521 R9DR
70 95 R12MR V2521 R12DR
95 120 R13MR V2521 R13DR
120 150 R15MR V2521 R15DR
150 185 R16MR V2521 R16DR
185 240 R18MR V2531 R18DR
240 R20MR V2531 R20DR
300 300 R21MR V2531 R21DR
400 R26MR V2531 R26DR
500 R28MR V2531 R28DR
Matrix- and punch holder for the 250 system
Matrix- and punch holder for the 250 system.
Stranded Al Solid Al Net weight
mm² mm² Name (kg)
16-150 16-185 V2521 0,921
185-500 240-300 V2531 0,750
16-500 16-300 V2540 0,157
6:45
