P. 153

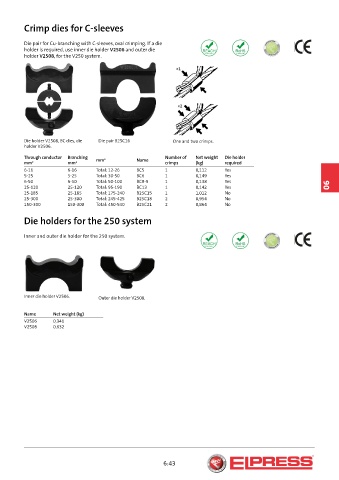

Crimp dies for C-sleeves
Die pair for Cu-branching with C-sleeves, oval crimping. If a die
holder is required, use inner die holder V2506 and outer die
holder V2508, for the V250 system.
Die holder V2508, BC dies, die Die pair B25C16 One and two crimps.
holder V2506.
Through conductor Branching mm² Name Number of Net weight Die holder
mm² mm² crimps (kg) required
6-16 6-16 Total: 12-26 BC5 1 0,112 Yes
5-25 5-25 Total: 30-50 BC6 1 0,149 Yes
6-50 6-50 Total: 50-100 BC8-9 1 0,138 Yes
25-120 25-120 Total: 95-190 BC13 1 0,142 Yes 06
25-185 25-185 Total: 175-240 B25C15 1 1,012 No
25-300 25-300 Total: 245-425 B25C18 2 0,954 No
150-300 150-300 Total: 450-540 B25C21 2 0,864 No
Die holders for the 250 system
Inner and outer die holder for the 250 system.
Inner die holder V2506. Outer die holder V2508.
Name Net weight (kg)
V2506 0,341
V2508 0,632
