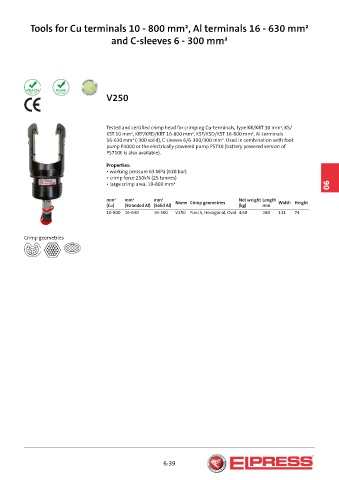

Tools for Cu terminals 10 - 800 mm², Al terminals 16 - 630 mm²

and C-sleeves 6 - 300 mm²

V250

Tested and certified crimp head for crimping Cu-terminals, type KR/KRT 10 mm², KS/
KST 10 mm², KRF/KRD/KRT 16-800 mm², KSF/KSD/KST 16-800 mm², Al-terminals
16-630 mm² (-300 solid), C sleeves 6/6-300/300 mm². Used in combination with foot
pump P4000 or the electrically powered pump PS710 (battery powered version of
PS710E is also available).

Properties:
• working pressure 63 MPa (630 bar)
• crimp force 250kN (25 tonnes)
• large crimp area, 10-800 mm² 06

mm² mm² mm² Name Crimp geometries Net weight Length Width Height
(Cu) (Stranded Al) (Solid Al) (kg) mm
10-800 16-630 16-300 V250 Punch, Hexagonal, Oval 4,68 280 111 74
