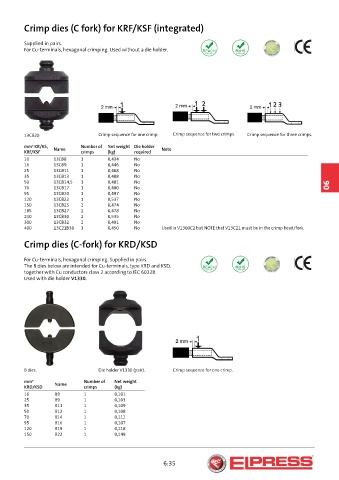

Crimp dies (C fork) for KRF/KSF (integrated)

Supplied in pairs.
For Cu-terminals, hexagonal crimping. Used without a die holder.

13CB20 Crimp sequence for one crimp. Crimp sequence for two crimps. Crimp sequence for three crimps.

mm² KR/KS, Name Number of Net weight Die holder Note
KRF/KSF crimps (kg) required
10 13CB8 1 0,434 No
16 13CB9 1 0,446 No
25 13CB11 1 0,468 No
35 13CB13 1 0,488 No
50 13CB14,5 1 0,481 No 06
70 13CB17 1 0,480 No
95 13CB20 1 0,497 No
120 13CB22 1 0,537 No
150 13CB25 2 0,474 No
185 13CB27 2 0,478 No
240 13CB30 2 0,535 No
300 13CB32 2 0,491 No
400 13C21B38 3 0,450 No Used in V1300C2 but NOTE that V13C21 must be in the crimp head/fork.

Crimp dies (C-fork) for KRD/KSD

For Cu-terminals, hexagonal crimping. Supplied in pairs.
The B dies below are intended for Cu-terminals, type KRD and KSD,
together with Cu conductors class 2 according to IEC 60228.
Used with die holder V1330.

B dies. Die holder V1330 (pair). Crimp sequence for one crimp.
mm² Name Number of Net weight
KRD/KSD crimps (kg)
16 B8 1 0,101
25 B9 1 0,103
35 B11 1 0,109
50 B12 1 0,108
70 B14 1 0,112
95 B16 1 0,107
120 B19 1 0,118
150 B22 1 0,148
