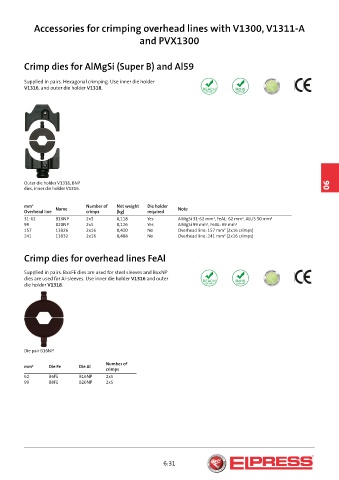

P. 141
Accessories for crimping overhead lines with V1300, V1311-A
and PVX1300
Crimp dies for AlMgSi (Super B) and Al59
Supplied in pairs. Hexagonal crimping. Use inner die holder
V1316, and outer die holder V1318.
Outer die holder V1318, BNP 06
dies, inner die holder V1316.
mm² Name Number of Net weight Die holder Note
Overhead line crimps (kg) required
31-62 B16NP 2x5 0,118 Yes AlMgSi 31-62 mm², FeAL: 62 mm², ALUS 50 mm²
99 B20NP 2x5 0,126 Yes AlMgSi 99 mm², FeAL: 99 mm²
157 13B26 2x16 0,420 No Overhead line: 157 mm² (2x16 crimps)
241 13B32 2x16 0,408 No Overhead line: 241 mm² (2x16 crimps)
Crimp dies for overhead lines FeAl
Supplied in pairs. BxxFE dies are used for steel sleeves and BxxNP
dies are used for Al-sleeves. Use inner die holder V1316 and outer
die holder V1318.
Die pair B16NP
Number of
mm² Die Fe Die Al
crimps
62 B6FE B16NP 2x5
99 B8FE B20NP 2x5
6:31
