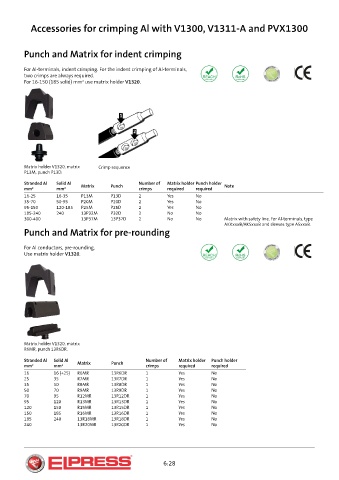

Accessories for crimping Al with V1300, V1311-A and PVX1300

Punch and Matrix for indent crimping

For Al-terminals, indent crimping. For the indent crimping of Al-terminals,
two crimps are always required.
For 16-150 (185 solid) mm² use matrix holder V1320.

Matrix holder V1320, matrix Crimp sequence
P13M, punch P13D.

Stranded Al Solid Al Matrix Punch Number of Matrix holder Punch holder Note
mm² mm² crimps required required
16-25 16-35 P13M P13D 2 Yes No
35-70 50-95 P20M P20D 2 Yes No
95-150 120-185 P25M P25D 2 Yes No
185-240 240 13P32M P32D 2 No No
300-400 13P37M 13P37D 2 No No Matrix with safety line. For Al-terminals, type
AKKxxxB/AKSxxxB and sleeves type ASxxxB.

Punch and Matrix for pre-rounding

For Al conductors, pre-rounding.
Use matrix holder V1320.

Matrix holder V1320, matrix
R6MR, punch 13R6DR.
Stranded Al Solid Al Matrix Punch Number of Matrix holder Punch holder
mm² mm² crimps required required
16 16 (+25) R6MR 13R6DR 1 Yes No
25 35 R7MR 13R7DR 1 Yes No
35 50 R8MR 13R8DR 1 Yes No
50 70 R9MR 13R9DR 1 Yes No
70 95 R12MR 13R12DR 1 Yes No
95 120 R13MR 13R13DR 1 Yes No
120 150 R15MR 13R15DR 1 Yes No
150 185 R16MR 13R16DR 1 Yes No
185 240 13R18MR 13R18DR 1 Yes No
240 13R20MR 13R20DR 1 Yes No

6:28
