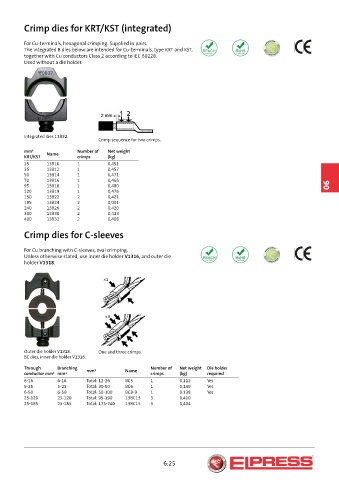

Crimp dies for KRT/KST (integrated)

For Cu-terminals, hexagonal crimping. Supplied in pairs.
The integrated B dies below are intended for Cu-terminals, type KRT and KST,
together with Cu conductors Class 2 according to IEC 60228.
Used without a die holder.

Integrated dies 13B32.
Crimp sequence for two crimps.

mm² Name Number of Net weight
KRT/KST crimps (kg)
25 13B10 1 0,451
35 13B12 1 0,457
50 13B14 1 0,471
70 13B16 1 0,466
95 13B18 1 0,480 06
120 13B19 1 0,476
150 13B22 2 0,421
185 13B24 2 0,001
240 13B26 2 0,420
300 13B30 2 0,413
400 13B32 2 0,408

Crimp dies for C-sleeves
For Cu branching with C-sleeves, oval crimping.
Unless otherwise stated, use inner die holder V1316, and outer die
holder V1318.

Outer die holder V1318, One and three crimps.
BC dies, inner die holder V1316.
Through Branching mm² Name Number of Net weight Die holder
conductor mm² mm² crimps (kg) required
6-16 6-16 Total: 12-26 BC5 1 0,112 Yes
5-25 5-25 Total: 30-50 BC6 1 0,149 Yes
6-50 6-50 Total: 50-100 BC8-9 1 0,138 Yes
25-120 25-120 Total: 95-190 13BC13 3 0,410
25-185 25-185 Total: 175-240 13BC15 3 0,404

6:25
