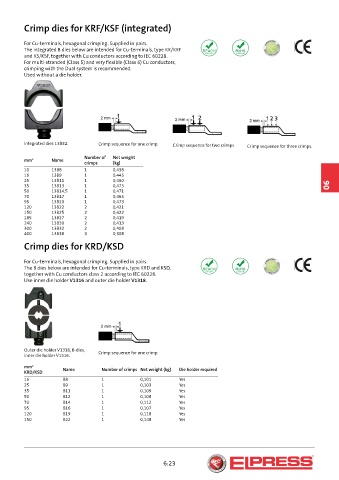

Crimp dies for KRF/KSF (integrated)

For Cu-terminals, hexagonal crimping. Supplied in pairs.
The integrated B dies below are intended for Cu-terminals, type KR/KRF
and KS/KSF, together with Cu conductors according to IEC 60228.
For multi-stranded (Class 5) and very flexible (Class 6) Cu conductors,
crimping with the Dual system is recommended.
Used without a die holder.

Integrated dies 13B32. Crimp sequence for one crimp. Crimp sequence for two crimps. Crimp sequence for three crimps.

Number of Net weight
mm² Name
crimps (kg)
10 13B8 1 0,438
16 13B9 1 0,445
25 13B11 1 0,460
35 13B13 1 0,475 06
50 13B14,5 1 0,471
70 13B17 1 0,465
95 13B20 1 0,473
120 13B22 2 0,421
150 13B25 2 0,422
185 13B27 2 0,419
240 13B30 2 0,413
300 13B32 2 0,408
400 13B38 3 0,308

Crimp dies for KRD/KSD

For Cu-terminals, hexagonal crimping. Supplied in pairs.
The B dies below are intended for Cu-terminals, type KRD and KSD,
together with Cu conductors class 2 according to IEC 60228.
Use inner die holder V1316 and outer die holder V1318.

Outer die holder V1318, B-dies, Crimp sequence for one crimp.
inner die holder V1316.

mm² Name Number of crimps Net weight (kg) Die holder required
KRD/KSD
16 B8 1 0,101 Yes
25 B9 1 0,103 Yes
35 B11 1 0,109 Yes
50 B12 1 0,108 Yes
70 B14 1 0,112 Yes
95 B16 1 0,107 Yes
120 B19 1 0,118 Yes
150 B22 1 0,148 Yes
