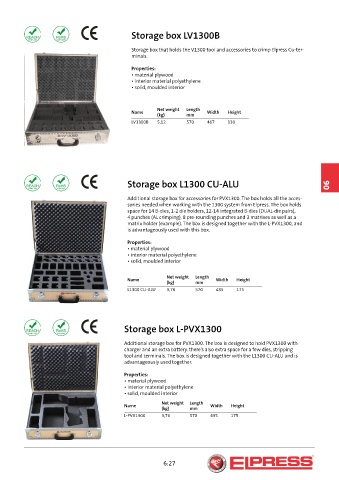

Storage box LV1300B

Storage box that holds the V1300 tool and accessories to crimp Elpress Cu-ter-
minals.
Properties:
• material plywood
• interior material polyethylene
• solid, moulded interior

Net weight Length
Name Width Height
(kg) mm
LV1300B 5,12 570 467 130

Storage box L1300 CU-ALU 06

Additional storage box for accessories for PVX1300. The box holds all the acces-
sories needed when working with the 1300 system from Elpress. The box holds
space for 14 B-dies, 1-2 die holders, 12-14 integrated B-dies (DUAL-die pairs),
4 punches (AL crimping), 8 pre-rounding punches and 3 matrixes as well as a
matrix holder (example). The box is designed together with the L-PVX1300, and
is advantageously used with this box.
Properties:
• material plywood
• interior material polyethylene
• solid, moulded interior

Net weight Length
Name Width Height
(kg) mm
L1300 CU-ALU 3,76 570 435 175

Storage box L-PVX1300

Additional storage box for PVX1300. The box is designed to hold PVX1300 with
charger and an extra battery. there’s also extra space for a few dies, stripping
tool and terminals. The box is designed together with the L1300 CU-ALU and is
advantageously used together.

Properties:
• material plywood
• interior material polyethylene
• solid, moulded interior
Net weight Length
Name Width Height
(kg) mm
L-PVX1300 3,76 570 435 175

6:27
