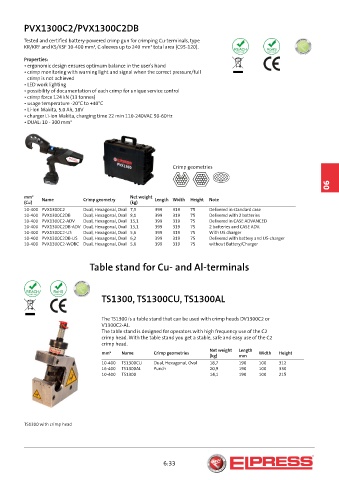

PVX1300C2/PVX1300C2DB

Tested and certified battery-powered crimp gun for crimping Cu-terminals, type
KR/KRF and KS/KSF 10-400 mm², C-sleeves up to 240 mm² total area (C95-120).
Properties:
• ergonomic design ensures optimum balance in the user’s hand
• crimp monitoring with warning light and signal when the correct pressure/full
crimp is not achieved
• LED work lighting
• possibility of documentation of each crimp for unique service control
• crimp force 124 kN (13 tonnes)
• usage temperature -20°C to +40°C
• Li-Ion Makita, 5.0 Ah, 18V
• charger Li-Ion Makita, charging time 22 min 110-240VAC 50-60Hz
• DUAL: 10 - 300 mm²

Crimp geometries

06

mm² Name Crimp geometry Net weight Length Width Height Note
(Cu) (kg)
10-400 PVX1300C2 Dual, Hexagonal, Oval 7,5 399 319 75 Delivered in standard case
10-400 PVX1300C2DB Dual, Hexagonal, Oval 8,1 399 319 75 Delivered with 2 batteries
10-400 PVX1300C2-ADV Dual, Hexagonal, Oval 15,1 399 319 75 Delivered in CASE ADVANCED
10-400 PVX1300C2DB-ADV Dual, Hexagonal, Oval 15,1 399 319 75 2 batteries and CASE ADV.
10-400 PVX1300C2-US Dual, Hexagonal, Oval 5,6 399 319 75 With US charger
10-400 PVX1300C2DB-US Dual, Hexagonal, Oval 6,2 399 319 75 Delivered with battery and US-charger
10-400 PVX1300C2-WOBC Dual, Hexagonal, Oval 5,6 399 319 75 without Battery/Charger

Table stand for Cu- and Al-terminals

TS1300, TS1300CU, TS1300AL

The TS1300 is a table stand that can be used with crimp heads DV1300C2 or
V1300C2-AL.
The table stand is designed for operators with high frequency use of the C2
crimp head. With the table stand you get a stable, safe and easy use of the C2
crimp head.
Net weight Length
mm² Name Crimp geometries Width Height
(kg) mm
10-400 TS1300CU Dual, Hexagonal, Oval 18,7 190 100 312
16-400 TS1300AL Punch 20,9 190 100 330
10-400 TS1300 14,1 190 100 215

TS1300 with crimp head

6:33
