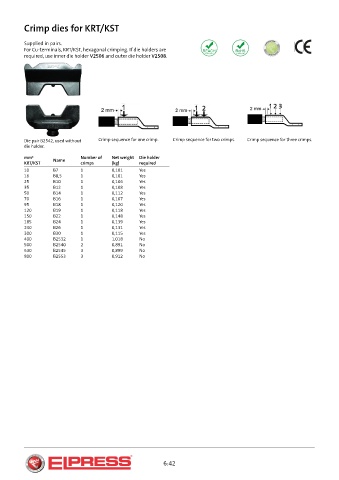

Crimp dies for KRT/KST
Supplied in pairs.
For Cu-terminals, KRT/KST, hexagonal crimping. If die holders are
required, use inner die holder V2506 and outer die holder V2508.
Die pair B2542, used without Crimp sequence for one crimp. Crimp sequence for two crimps. Crimp sequence for three crimps.
die holder.
mm² Number of Net weight Die holder
KRT/KST Name crimps (kg) required
10 B7 1 0,101 Yes
16 B8,5 1 0,101 Yes
25 B10 1 0,106 Yes
35 B12 1 0,108 Yes
50 B14 1 0,112 Yes
70 B16 1 0,107 Yes
95 B18 1 0,120 Yes
120 B19 1 0,118 Yes
150 B22 1 0,148 Yes
185 B24 1 0,139 Yes
240 B26 1 0,131 Yes
300 B30 1 0,115 Yes
400 B2532 1 1,018 No
500 B2540 2 0,891 No
630 B2545 3 0,899 No
800 B2553 3 0,912 No
6:42
