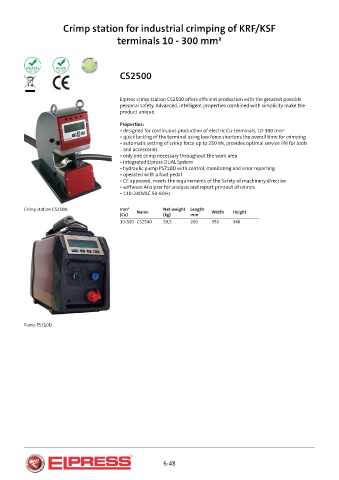

Crimp station for industrial crimping of KRF/KSF
terminals 10 - 300 mm²
CS2500
Elpress crimp station CS2500 offers efficient production with the greatest possible
personal safety. Advanced, intelligent properties combined with simplicity make the
product unique.
Properties:
• designed for continuous production of electric Cu-terminals, 10-300 mm²
• quick locking of the terminal using low force shortens the overall time for crimping
• automatic setting of crimp force up to 250 kN, provides optimal service life for tools
and accessories
• only one crimp necessary throughout the work area
• integrated Elpress DUAL System
• hydraulic pump PS710D with control, monitoring and error reporting
• operated with a foot pedal
• CE approved, meets the requirements of the Safety of machinery directive
• software Analyzer for analysis and report printout of crimps
• 110-240VAC 50-60Hz
Crimp station CS2500. mm² Name Net weight Length Width Height
(Cu) (kg) mm
10-300 CS2500 59,5 200 350 340
Pump PS710D.
