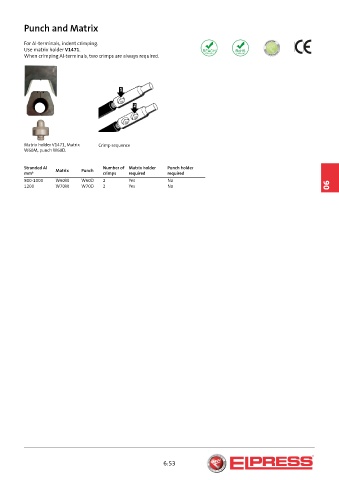

Punch and Matrix

For Al-terminals, indent crimping.
Use matrix holder V1471.
When crimping Al-terminals, two crimps are always required.

Matrix holder V1471, Matrix Crimp sequence
W60M, punch W60D.

Stranded Al Number of Matrix holder Punch holder
mm² Matrix Punch crimps required required
800-1000 W60M W60D 2 Yes No
1200 W70M W70D 2 Yes No 06

6:53
