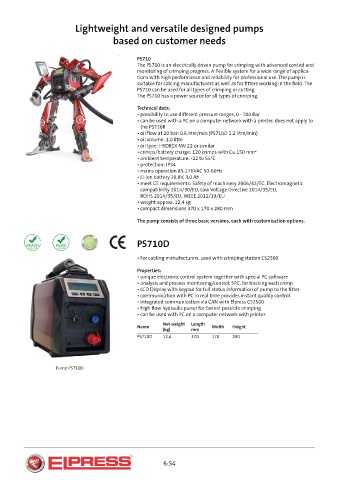

Lightweight and versatile designed pumps

based on customer needs

m
PS710
The PS710 is an electrically driven pump for crimping with advanced control and
monitoring of crimping progress. A flexible system for a wide range of applica-
tions with high performance and reliability for professional use. The pump is
suitable for cabling manufacturers as well as for fitters working in the field. The
PS710 can be used for all types of crimping or cutting.
The PS710 has a power source for all types of crimping.

Technical data:
• possibility to use different pressure ranges, 0 - 700 Bar
• can be used with a PC on a computer network with a printer, does not apply to
the PS710R
• oil flow at 20 bar: 0.6 litre/min (PS710D 1.2 litre/min)
• oil volume: 1.0 litre
• oil type: HYDREX MV 22 or similar
• crimps/battery charge: 120 crimps with Cu 150 mm²
• ambient temperature: -22 to 55°C
• protection: IP54
• mains operation 85-276VAC 50-60Hz
• Li-ion battery 28,8V, 3,0 Ah
• meet CE requirements: Safety of machinery 2006/42/EC, Electromagnetic
compatibility 2014/30/EU, Low Voltage Directive 2014/35/EU,
ROHS 2014/35/EU, WEEE 2012/19/EU

• weight approx. 12,4 kg
• compact dimensions 370 x 170 x 280 mm

The pump consists of three basic versions, each with customisation options.

PS710D

• For cabling manufacturers. used with crimping station CS2500

Properties:
• unique electronic control system together with special PC software
• analysis and process monitoring/control, SPC, for tracking each crimp
• LCD Display with keypad for full status information of pump to the fitter
• communication with PC in real time provides instant quality control
• integrated communication via CAN with Elpress CS2500
• high flow hydraulic pump for fastest possible crimping
• can be used with PC on a computer network with printer
Net weight Length
Name Width Height
(kg) mm
PS710D 12,4 370 170 280

Pump PS710D
