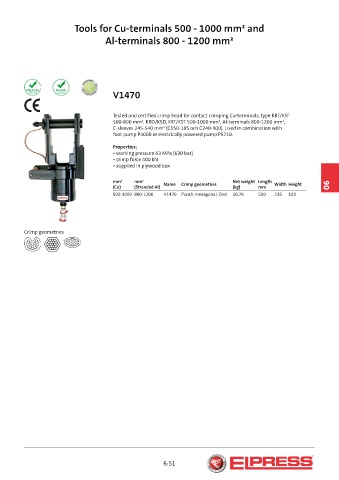

Tools for Cu-terminals 500 - 1000 mm² and

Al-terminals 800 - 1200 mm²

V1470

Tested and certified crimp head for contact crimping Cu-terminals, type KRF/KSF
500-800 mm², KRD/KSD, KRT/KST 500-1000 mm², Al-terminals 800-1200 mm²,
C-sleeves 245-540 mm² (C150-185 och C240-300). Used in combination with
foot pump P4000 or electrically powered pump PS710.

Properties:
• working pressure 63 MPa (630 bar)
• crimp force 400 kN
• supplied in plywood box

mm² mm² Name Crimp geometries Net weight Length Width Height
(Cu) (Stranded Al) (kg) mm 06
500-1000 800-1200 V1470 Punch, Hexagonal, Oval 20,76 510 235 103

Crimp geometries
