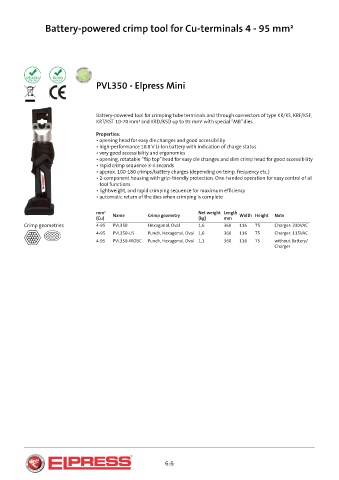

Battery-powered crimp tool for Cu-terminals 4 - 95 mm²

PVL350 - Elpress Mini

Battery-powered tool for crimping tube terminals and through connectors of type KR/KS, KRF/KSF,
KRT/KST 10-70 mm² and KRD/KSD up to 95 mm² with special ”MB” dies.

Properties:
• opening head for easy die changes and good accessibility
• high-performance 10.8 V Li-Ion battery with indication of charge status
• very good accessibility and ergonomics
• opening, rotatable ”flip top” head for easy die changes and slim crimp head for good accessibility
• rapid crimp sequence 3-4 seconds
• approx. 100-180 crimps/battery charges (depending on temp, frequency etc.)
• 2-component housing with grip-friendly protection. One-handed operation for easy control of all
tool functions
• lightweight, and rapid crimping sequence for maximum efficiency
• automatic return of the dies when crimping is complete

mm² Name Crimp geometry Net weight Length Width Height Note
(Cu) (kg) mm
Crimp geometries 4-95 PVL350 Hexagonal, Oval 1,6 360 116 75 Charger: 230VAC
4-95 PVL350-US Punch, Hexagonal, Oval 1,6 360 116 75 Charger: 115VAC
4-95 PVL350-WOBC Punch, Hexagonal, Oval 1,1 360 116 75 without Battery/
Charger

6:6
