P. 112

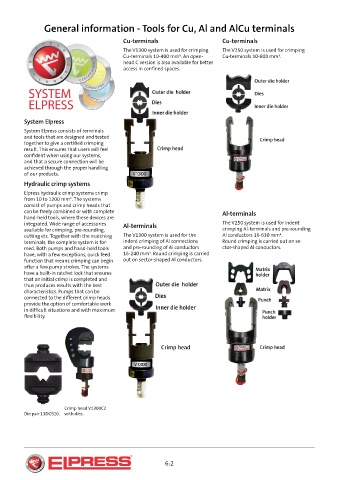

General information - Tools for Cu, Al and AlCu terminals

                                            Cu-terminals                       Cu-terminals

                                            The V1300 system is used for crimping   The V250 system is used for crimping
                                            Cu-terminals 10-400 mm². An open-  Cu-terminals 10-800 mm².
                                            head C version is also available for better
                                            access in confined spaces.









          System Elpress
          System Elpress consists of terminals
          and tools that are designed and tested
          together to give a certified crimping
          result. This ensures that users will feel
          confident when using our systems,
          and that a secure connection will be
          achieved through the proper handling
          of our products.

          Hydraulic crimp systems
          Elpress hydraulic crimp systems crimp
          from 10 to 1200 mm². The systems
          consist of pumps and crimp heads that
          can be freely combined or with complete                              Al-terminals
          hand-held tools, where these devices are
          integrated. Wide range of accessories   Al-terminals                 The V250 system is used for indent
          available for crimping, pre-rounding,                                crimping Al-terminals and pre-rounding
          cutting etc. Together with the matching   The V1300 system is used for the    Al conductors 16-630 mm².
          terminals, the complete system is for-  indent crimping of Al connections    Round crimping is carried out on se-
          med. Both pumps and hand-held tools   and pre-rounding of Al conductors    ctor-shaped Al conductors.
          have, with a few exceptions, quick feed   16-240 mm². Round crimping is carried
          function that means crimping can begin   out on sector-shaped Al conductors.
          after a few pump strokes. The systems
          have a built-in ratchet lock that ensures
          that an initial crimp is completed and
          thus produces results with the best
          characteristics. Pumps that can be
          connected to the different crimp heads
          provide the option of comfortable work
          in difficult situations and with maximum
          flexibility.


















                        Crimp head V1300C2
          Die pair 13DCB20.  with dies.








                                                           6:2
