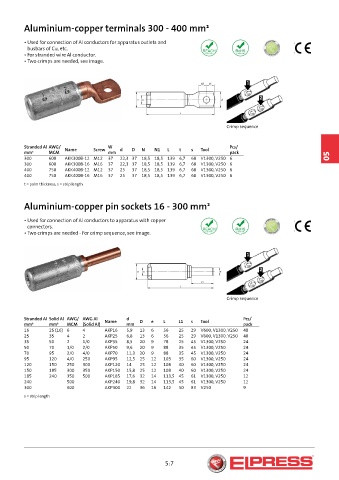

Page 107 - Elpress英文样本电气连接压接系统

Aluminium-copper terminals 300 - 400 mm²

• Used for connection of Al conductors for apparatus outlets and
busbars of Cu, etc.
• For stranded wire Al conductor.
• Two crimps are needed, see image.

Crimp sequence

Stranded Al AWG/ Name Screw W d D N N1 L t s Tool Pcs/
mm² MCM mm pack
300 600 AKK300B-12 M12 37 22,3 37 18,5 18,5 139 6,7 68 V1300, V250 6 05
300 600 AKK300B-16 M16 37 22,3 37 18,5 18,5 139 6,7 68 V1300, V250 6
400 750 AKK400B-12 M12 37 25 37 18,5 18,5 139 6,7 68 V1300, V250 6
400 750 AKK400B-16 M16 37 25 37 18,5 18,5 139 6,7 68 V1300, V250 6
t = palm thickness, s = strip length

Aluminium-copper pin sockets 16 - 300 mm²

• Used for connection of Al conductors to apparatus with copper
connectors.
• Two crimps are needed - For crimp sequence, see image.

Crimp sequence

Stranded Al Solid Al AWG/ AWG Al Name d D e L L1 s Tool Pcs/
mm² mm² MCM (Solid Al) mm pack
16 25 (16) 6 4 AKP16 5,9 13 6 56 25 29 V600, V1300, V250 48
25 35 4 2 AKP25 6,8 13 6 56 25 29 V600, V1300, V250 48
35 50 2 1/0 AKP35 8,5 20 9 78 25 45 V1300, V250 24
50 70 1/0 2/0 AKP50 9,6 20 9 88 35 45 V1300, V250 24
70 95 2/0 4/0 AKP70 11,3 20 9 88 35 45 V1300, V250 24
95 120 4/0 250 AKP95 12,5 25 12 103 35 60 V1300, V250 24
120 150 250 300 AKP120 14 25 12 108 40 60 V1300, V250 24
150 185 300 350 AKP150 15,8 25 12 108 40 60 V1300, V250 24
185 240 350 500 AKP185 17,6 32 14 113,5 45 61 V1300, V250 12
240 500 AKP240 19,8 32 14 113,5 45 61 V1300, V250 12
300 600 AKP300 22 36 16 142 50 83 V250 9
s = strip length

5:7
