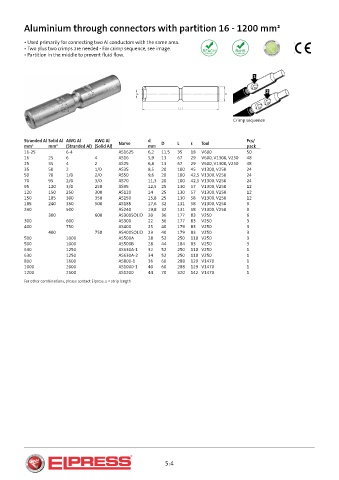

Aluminium through connectors with partition 16 - 1200 mm²

• Used primarily for connecting two Al conductors with the same area.
• Two plus two crimps are needed - For crimp sequence, see image.
• Partition in the middle to prevent fluid flow.

Crimp sequence

Stranded Al Solid Al AWG Al AWG Al Name d D L s Tool Pcs/
mm² mm² (Stranded Al) (Solid Al) mm pack
16-25 6-4 AS1625 6,2 11,5 35 18 V600 50
16 25 6 4 AS16 5,9 13 67 29 V600, V1300, V250 48
25 35 4 2 AS25 6,8 13 67 29 V600, V1300, V250 48
35 50 2 1/0 AS35 8,5 20 100 45 V1300, V250 24
50 70 1/0 2/0 AS50 9,6 20 100 42,5 V1300, V250 24
70 95 2/0 3/0 AS70 11,3 20 100 42,5 V1300, V250 24
95 120 3/0 250 AS95 12,5 25 130 57 V1300, V250 12
120 150 250 300 AS120 14 25 130 57 V1300, V250 12
150 185 300 350 AS150 15,8 25 130 58 V1300, V250 12
185 240 350 500 AS185 17,6 32 131 58 V1300, V250 9
240 500 AS240 19,8 32 131 58 V1300, V250 9
300 600 AS300SOLID 20 36 177 83 V250 6
300 600 AS300 22 36 177 83 V250 3
400 750 AS400 25 40 179 83 V250 3
400 750 AS400SOLID 23 40 179 83 V250 3
500 1000 AS500A 28 52 250 110 V250 3
500 1000 AS500B 28 44 184 83 V250 3
630 1250 AS630A-1 32 52 250 110 V250 1
630 1250 AS630A-2 34 52 250 110 V250 1
800 1600 AS800-1 36 60 288 129 V1470 1
1000 2000 AS1000-1 40 60 288 129 V1470 1
1200 2500 AS1200 44 70 320 142 V1470 1
For other combinations, please contact Elpress. s = strip length
