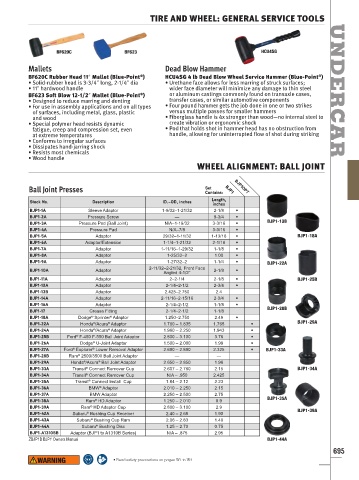

TIRE AND WHEEL: GENERAL SERVICE TOOLS

BF620C BF623 HCU4SG

Mallets Dead Blow Hammer
®
®
BF620C Rubber Head 11ʺ Mallet (Blue-Point ) HCU4SG 4 lb Dead Blow Wheel Service Hammer (Blue-Point )
• Solid-rubber head is 3-3/4ʺ long, 2-1/4ʺ dia • Urethane face allows for less marring of struck surfaces;
• 11ʺ hardwood handle wider face diameter will minimize any damage to thin steel UNDERCAR
®
BF623 Soft Blow 12-1/2ʺ Mallet (Blue-Point ) or aluminum castings commonly found on transaxle cases,
• Designed to reduce marring and denting transfer cases, or similar automotive components
• For use in assembly applications and on all types • Four pound hammer gets the job done in one or two strikes
of surfaces, including metal, glass, plastic versus multiple passes for smaller hammers
and wood • Fiberglass handle is 4x stronger than wood—no internal steel to
• Special polymer head resists dynamic create vibration or ergonomic shock
fatigue, creep and compression set, even • Pod that holds shot in hammer head has no obstruction from
at extreme temperatures handle, allowing for uninterrupted flow of shot during striking
• Conforms to irregular surfaces
• Dissipates hand-jarring shock
• Resists most chemicals
• Wood handle
WHEEL ALIGNMENT: BALL JOINT

Ball Joint Presses Set BJP1 BJP1OPT
Contains:
Length,
Stock No. Description ID.–OD, inches
inches
BJP1-1A Sleeve Adaptor 1-9/32–1-21/32 2-1/8 •
BJP1-2A Pressure Screw — 9-3/4 •
BJP1-3A Pressure Pad (Ball Joint) N/A–1-19/32 3-3/16 • BJP1-13B
BJP1-4A Pressure Pad N/A–7/8 3-3/16 •
BJP1-5A Adaptor 29/32–1-11/32 1-13/16 • BJP1-18A
BJP1-6A Adaptor/Extension 1-1/4–1-21/32 2-1/16 •
BJP1-7A Adaptor 1-11/16–1-29/32 1-1/8 •
BJP1-8A Adaptor 1-25/32–2 1.00 •
BJP1-9A Adaptor 1-27/32–2 1-1/4 • BJP1-22A
2-11/32–2-21/32, Front Face
BJP1-10A Adaptor 2-1/8 •
Angled 4-1/2°
BJP1-11A Adaptor 2–2-1/4 2-1/8 • BJP1-25B
BJP1-12A Adaptor 2-1/4–2-1/2 2-3/4 •
BJP1-13B Adaptor 2.425–2.750 2.4
BJP1-14A Adaptor 2-11/16–2-15/16 2-3/4 •
BJP1-16A Adaptor 2-1/4–2-1/2 1-1/8 •
BJP1-28B
BJP1-17 Grease Fitting 2-1/4–2-1/2 1-1/8
®
®
BJP1-18A Dodge Sprinter Adaptor 1.250–2.750 2.49 •
®
®
BJP1-22A Honda /Acura Adaptor 1.760 – 1.835 1.765 • BJP1-29A
®
®
BJP1-24A Honda /Acura Adaptor 1.960 – 2.250 1.943 •
®
BJP1-25B Ford F-450 F-550 Ball Joint Adaptor 2.800 – 3.100 3.76 •
®
BJP1-26A Dodge U-Joint Adaptor 1.500 – 2.000 1.98 •
®
®
BJP1-27A Ford Explorer Lower Removal Adaptor 2.680 – 2.880 2.325 • BJP1-33A
®
BJP1-28B Ram 2500/3500 Ball Joint Adaptor — —
®
®
BJP1-29A Honda /Acura Ball Joint Adaptor 2.650 – 2.850 1.96
®
BJP1-33A Transit Connect Remover Cup 2.607 – 2.760 2.15 BJP1-34A
®
BJP1-34A Transit Connect Remover Cup N/A – .950 2.425
®
BJP1-35A Transit Connect Install Cup 1.84 – 2.12 2.23
®
BJP1-36A BMW Adaptor 2.010 – 2.250 2.15
BJP1-37A BMW Adaptor 2.250 – 2.500 2.75
®
BJP1-38A Ram HD Adaptor 1.250 – 2.010 0.9 BJP1-35A
®
BJP1-39A Ram HD Adaptor Cup 2.800 – 3.100 2.9
BJP1-39A
®
BJP1-42A Subaru Bushing Cup Receiver 2.40 – 2.65 1.90
®
BJP1-43A Subaru Bushing Cup Ram 2.06 – 2.83 1.40
®
BJP1-44A Subaru Bushing Disc 1.25 – 2.70 0.75
BJP1-A1310SB Adaptor (BJP1 to A1310B Series) N/A – .875 2.95
ZBJP1B BJP1 Owners Manual BJP1-44A
695
• Read safety precautions on pages W1 to W4
