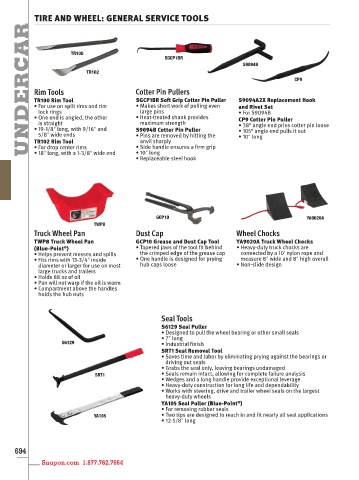

TIRE AND WHEEL: GENERAL SERVICE TOOLS
UNDERCAR

TR100
SGCP1BR
S9094B
TR102
CP9
Rim Tools Cotter Pin Pullers
TR100 Rim Tool SGCP1BR Soft Grip Cotter Pin Puller S9094A2X Replacement Hook
• For use on split rims and rim • Makes short work of pulling even and Rivet Set
lock rings large pins • For S9094B
• One end is angled, the other • Heat-treated shank provides CP9 Cotter Pin Puller
is straight maximum strength • 38° angle end pries cotter pin loose
• 19-1/8ʺ long, with 9/16ʺ and S9094B Cotter Pin Puller • 105° angle end pulls it out
5/8ʺ wide ends • Pins are removed by hitting the • 10ʺ long
TR102 Rim Tool anvil sharply
• For drop center rims • Side handle ensures a firm grip
• 18ʺ long, with a 1-3/8ʺ wide end • 10ʺ long
• Replaceable steel hook

GCP10 YA9020A
TWP8
Truck Wheel Pan Dust Cap Wheel Chocks
TWP8 Truck Wheel Pan GCP10 Grease and Dust Cap Tool YA9020A Truck Wheel Chocks
(Blue-Point ) • Tapered jaws of the tool fit behind • Heavy-duty truck chocks are
®
• Helps prevent messes and spills the crimped edge of the grease cap connected by a 10ʹ nylon rope and
• Fits rims with 13-3/4ʺ inside • One handle is designed for prying measure 8ʺ wide and 8ʺ high overall
diameter or larger for use on most hub caps loose • Non-slide design
large trucks and trailers
• Holds 88 oz of oil
• Pan will not warp if the oil is warm
• Compartment above the handles
holds the hub nuts

Seal Tools
S6129 Seal Puller
• Designed to pull the wheel bearing or other small seals
• 7ʺ long
S6129 • Industrial finish
SRT1 Seal Removal Tool
• Saves time and labor by eliminating prying against the bearings or
driving out seals
• Grabs the seal only, leaving bearings undamaged
SRT1 • Seals remain intact, allowing for complete failure analysis
• Wedges and a long handle provide exceptional leverage
• Heavy-duty construction for long life and dependability
• Works with steering, drive and trailer wheel seals on the largest
heavy-duty wheels
®
YA105 Seal Puller (Blue-Point )
• For removing rubber seals
YA105 • Two tips are designed to reach in and fit nearly all seal applications
• 12-5/8ʺ long

694
