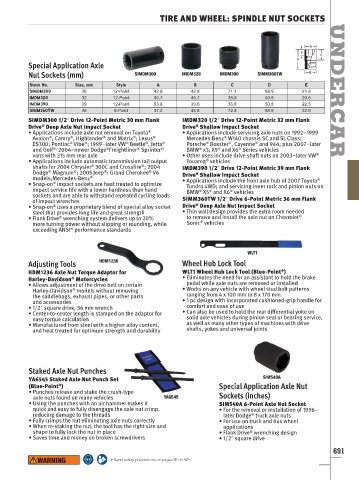

TIRE AND WHEEL: SPINDLE NUT SOCKETS

Special Application Axle
Nut Sockets (mm) SIMDM300 IMDM320 IMDM390 SIMM360TW

Stock No. Size, mm Style A B C D E
SIMDM300 30 12-Point 42.9 42.9 71.1 88.9 21.6 UNDERCAR
IMDM320 32 12-Point 45.7 45.7 36.8 50.8 20.6
IMDM390 39 12-Point 53.8 39.6 36.8 50.8 22.3
SIMM360TW 36 6-Point 47.2 45.8 72.8 88.9 22.9
SIMDM300 1/2ʺ Drive 12-Point Metric 30 mm Flank IMDM320 1/2ʺ Drive 12-Point Metric 32 mm Flank
®
®
Drive Deep Axle Nut Impact Socket Drive Shallow Impact Socket
• Applications include axle nut removal on Toyota • Applications include servicing axle nuts on 1992–1999
®
®
®
®
Avalon , Camry , Highlander and Matrix ; Lexus Mercedes-Benz W140 chassis SC and SL Class;
®
®
®
®
ES300; Pontiac Vibe ; 1999–later VW Beetle , Jetta Porsche Boxster , Cayenne and 944; plus 2007–later
®
®
®
®
®
®
®
and Golf 2004–newer Dodge Freightliner Sprinter BMW x3, X5 and X6 Series vehicles
®
®
®
®
®
®;
®
®
vans with 215 mm rear axle • Other uses include drive shaft nuts on 2003–later VW
®
• Applications include automatic transmission tail output Touareg vehicles
®
®
shafts for 2004 Chrysler 300C and Crossfire ; 2004 IMDM390 1/2ʺ Drive 12-Point Metric 39 mm Flank
®
®
®
®
Dodge Magnum ; 2005 Jeep : Grand Cherokee V6 Drive Shallow Impact Socket
®
models;Mercedes-Benz ® • Applications include the front axle hub of 2007 Toyota
®
®
• Snap-on impact sockets are heat treated to optimize Tundra 4WD; and servicing inner rack and pinion nuts on
impact service life with a lower hardness than hand BMW X5 and X6 vehicles
®
®
®
sockets and are able to withstand repeated cycling loads
of impact wrenches SIMM360TW 1/2ʺ Drive 6-Point Metric 36 mm Flank
®
• Snap-on uses a proprietary blend of special alloy socket Drive Deep Axle Nut Impact Socket
®
steel that provides long life and great strength • Thin wall design provides the extra room needed
®
• Flank Drive wrenching system delivers up to 20% to remove and install the axle nut on Chevrolet
®
®
more turning power without slipping or rounding, while Sonic vehicles
®
exceeding ANSI performance standards
WLT1
Adjusting Tools HDM1236 Wheel Hub Lock Tool
®
HDM1236 Axle Nut Torque Adaptor for WLT1 Wheel Hub Lock Tool (Blue-Point )
Harley-Davidson Motorcycles • Eliminates the need for an assistant to hold the brake
®
• Allows adjustment of the drive belt on certain pedal while axle nuts are removed or installed
®
Harley-Davidson models without removing • Works on any vehicle with wheel stud bolt patterns
the saddlebags, exhaust pipes, or other parts ranging from 4 x 100 mm to 8 x 170 mm
and accessories • 1 pc design with incorporated cushioned-grip handle for
• 1/2ʺ square drive, 36 mm wrench comfort and ease of use
• Center-to-center length is stamped on the adaptor for • Can also be used to hold the rear differential yoke on
easy torque calculation solid axle vehicles during pinion seal or bearing service,
• Manufactured from steel with a higher alloy content, as well as many other types of machines with drive
and heat treated for optimum strength and durability shafts, yokes and universal joints
Staked Axle Nut Punches
YA6545 Staked Axle Nut Punch Set SIM540A
(Blue-Point ) Special Application Axle Nut
®
• Punches release and stake the crush-type
axle nuts found on many vehicles YA6545 Sockets (inches)
• Using the punches with an air hammer makes it SIM540A 6-Point Axle Nut Socket
quick and easy to fully disengage the axle nut crimp, • For the removal or installation of 1996–
reducing damage to the threads later Dodge truck axle nuts
®
• Fully crimps the nut eliminating axle nuts correctly • For use on truck and bus wheel
• When re-staking the nut, the tool has the right size and applications
shape to fully lock the nut in place • Flank Drive wrenching design
®
• Saves time and money on broken screwdrivers • 1/2ʺ square drive
691
• Read safety precautions on pages W1 to W4
