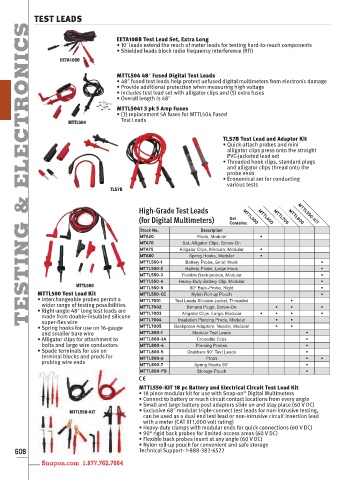

TEST LEADS
ELECTRONICS

EETA108B Test Lead Set, Extra Long
• 10ʹ leads extend the reach of meter leads for testing hard-to-reach components
• Shielded leads block radio frequency interference (RFI)
EETA108B

MTTL504 48ʺ Fused Digital Test Leads
• 48ʺ fused test leads help protect unfused digital multimeters from electronic damage
• Provide additional protection when measuring high voltage
• Includes test lead set with alligator clips and (5) extra fuses
• Overall length is 48ʺ
MTTL5041 3 pk 5 Amp Fuses
• (3) replacement 5A fuses for MTTL504 Fused
Test Leads
MTTL504
TLS7B Test Lead and Adaptor Kit
• Quick-attach probes and mini
alligator clips press onto the straight
PVC-jacketed lead set
• Threaded hook clips, standard plugs
and alligator clips thread onto the
probe ends
• Economical set for conducting
various tests
TLS7B
& High-Grade Test Leads

(for Digital Multimeters) Set MTTL500 MTTL600 MTTL700 MTTL800
Contains:
TESTING MTTL500 Test Lead Kit MTA75 Test Leads Silicone Jacket, Threaded • • • • • • • •
MTTL550-KIT
Stock No.
Description
Prods, Modular
MTA20
•
Set, Alligator Clips, Screw-On
MTA70
Alligator Clips, Medium, Modular
Spring Hooks, Modular
MTA80
Battery Probe, Small Hook
MTTL550-1
Battery Probe, Large Hook
MTTL550-2
Flexible Back-probes, Modular
MTTL550-3
Heavy-Duty Battery Clip, Modular
MTTL550-4
MTTL500
90° Back-Probe, Rigid
MTTL550-5
Nylon Roll-up Pouch
MTTL550-CC
• Interchangeable probes permit a
MTTL7001
wider range of testing possibilities
Banana Plugs, Screw-On
• Right-angle 48ʺ long test leads are
Alligator Clips, Large, Modular
MTTL7003
made from double-insulated silicone
Insulation Piercing Prods, Modular
MTTL7004
super-flex wire
MTTL7005
• Spring hooks for use on 16-gauge MTTL7002 Backprobe Adaptors, Needle, Modular • • • • • • • • • • • •
and smaller bare wire MTTL800-1 Modular Test Leads •
• Alligator clips for attachment to MTTL800-3A Crocodile Clips •
bolts and large wire conductors MTTL800-4 Piercing Probes •
• Spade terminals for use on MTTL800-5 Grabbers 90° Test Leads •
terminal blocks and prods for MTTL800-6 Prods • •
probing wire ends
MTTL800-7 Spring Hooks 90° •
MTTL800-PB Storage Pouch •
MTTL550-KIT 18 pc Battery and Electrical Circuit Test Lead Kit
®
• 18 piece modular kit for use with Snap-on Digital Multimeters
• Connect to battery or reach circuit contact locations from every angle
• Small and large battery post adapters slide on and stay place (60 V DC)
• Exclusive 68ʺ modular triple-connect test leads for non-intrusive testing,
MTTL550-KIT
can be used as a dual end test lead or non-intrusive circuit insertion lead
with a meter (CAT III 1,000 volt rating)
• Heavy-duty clamps with modular ends for quick connections (60 V DC)
• 90° rigid back probes for limited-access areas (60 V DC)
• Flexible back probes insert at any angle (60 V DC)
• Nylon roll-up pouch for convenient and safe storage
608 Technical Support- 1-888-382-6522
Snapon.com 1.877.762.7664
