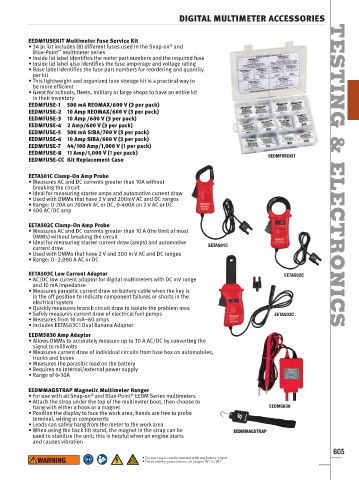

DIGITAL MULTIMETER ACCESSORIES

EEDMFUSEKIT Multimeter Fuse Service Kit
®
• 34 pc kit includes (8) different fuses used in the Snap-on and
Blue-Point multimeter series
™
• Inside lid label identifies the meter part numbers and the required fuse
• Inside lid label also identifies the fuse amperage and voltage rating
• Base label identifies the fuse part numbers for reordering and quantity
per kit TESTING
• This lightweight and organized fuse storage kit is a practical way to
be more efficient
• Great for schools, fleets, military or large shops to have an entire kit
in their inventory
EEDMFUSE-1 500 mA REOMAX/600 V (3 per pack)
EEDMFUSE-2 10 Amp REOMAX/600 V (3 per pack)
EEDMFUSE-3 10 Amp /600 V (3 per pack)
EEDMFUSE-4 2 Amp/600 V (3 per pack)
EEDMFUSE-5 500 mA SIBA/700 V (3 per pack)
EEDMFUSE-6 10 Amp SIBA/600 V (3 per pack)
EEDMFUSE-7 44/100 Amp/1,000 V (1 per pack) &
EEDMFUSE-8 11 Amp/1,000 V (1 per pack) EEDMFUSEKIT
EEDMFUSE-CC Kit Replacement Case

EETA501C Clamp-On Amp Probe
• Measures AC and DC currents greater than 10A without
breaking the circuit
• Ideal for measuring starter amps and automotive current draw
• Used with DMMs that have 2 V and 200mV AC and DC ranges
• Range: 0-20A on 200mV AC or DC, 0-400A on 2 V AC or DC
• 400 AC/DC amp

EETA502C Clamp-On Amp Probe
• Measures AC and DC currents greater than 10 A (the limit of most
DMMs) without breaking the circuit
• Ideal for measuring starter current draw (amps) and automotive EETA501C ELECTRONICS
current draw
• Used with DMMs that have 2 V and 200 m V AC and DC ranges
• Range: 0–2,000 A AC or DC

EETA503C Low Current Adaptor EETA502C
• AC/DC low current adaptor for digital multimeters with DC mV range
and 10 mA impedance
• Measures parasitic current draw on battery cable when the key is
in the off position to indicate component failures or shorts in the
electrical system
• Quickly measures branch circuit draw to isolate the problem area
• Safely measures current draw of electrical fuel pumps EETA503C
• Measures from 10 mA–60 amps
• Includes EETA503C1 Dual Banana Adaptor
EEDM5830 Amp Adaptor
• Allows DMMs to accurately measure up to 30 A AC/DC by converting the
signal to millivolts
• Measures current draw of individual circuits from fuse box on automobiles,
trucks and buses
• Measures the parasitic load on the battery
• Requires no internal/external power supply
• Range of 0-30A

EEDMMAGSTRAP Magnetic Multimeter Hanger
®
®
• For use with all Snap-on and Blue-Point EEDM Series multimeters
• Attach the strap under the top of the multimeter boot, then choose to
hang with either a hook or a magnet EEDM5830
• Position the display to face the work area; hands are free to probe
terminal, wiring or components
• Leads can safely hang from the meter to the work area
• When using the back tilt stand, the magnet in the strap can be EEDMMAGSTRAP
used to stabilize the unit; this is helpful when an engine starts
and causes vibration
605
• Do not use in environment with explosive vapor
• Read safety precautions on pages W1 to W4
