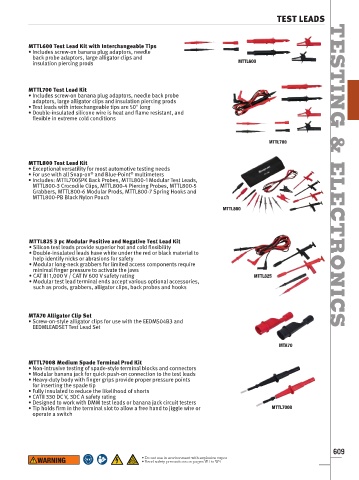

TEST LEADS

MTTL600 Test Lead Kit with Interchangeable Tips
• Includes screw-on banana plug adaptors, needle
back probe adaptors, large alligator clips and
insulation piercing prods MTTL600 TESTING

MTTL700 Test Lead Kit
• Includes screw-on banana plug adaptors, needle back probe
adaptors, large alligator clips and insulation piercing prods
• Test leads with interchangeable tips are 50ʺ long
• Double-insulated silicone wire is heat and flame resistant, and
flexible in extreme cold conditions

MTTL700 &

MTTL800 Test Lead Kit
• Exceptional versatility for most automotive testing needs
• For use with all Snap-on and Blue-Point multimeters
®
®
• Includes: MTTL7005PK Back Probes, MTTL800-1 Modular Test Leads,
MTTL800-3 Crocodile Clips, MTTL800-4 Piercing Probes, MTTL800-5
Grabbers, MTTL800-6 Modular Prods, MTTL800-7 Spring Hooks and
MTTL800-PB Black Nylon Pouch
MTTL800

MTTL825 3 pc Modular Positive and Negative Test Lead Kit
• Silicon test leads provide superior hot and cold flexibility ELECTRONICS
• Double-insulated leads have white under the red or black material to
help identify nicks or abrasions for safety
• Modular long-neck grabbers for limited access components require
minimal finger pressure to activate the jaws
• CAT III 1,000 V / CAT IV 600 V safety rating MTTL825
• Modular test lead terminal ends accept various optional accessories,
such as prods, grabbers, alligator clips, back probes and hooks

MTA70 Alligator Clip Set
• Screw-on-style alligator clips for use with the EEDM504B3 and
EEDMLEADSET Test Lead Set

MTA70

MTTL7008 Medium Spade Terminal Prod Kit
• Non-intrusive testing of spade-style terminal blocks and connectors
• Modular banana jack for quick push-on connection to the test leads
• Heavy-duty body with finger grips provide proper pressure points
for inserting the spade tip
• Fully insulated to reduce the likelihood of shorts
• CATII 330 DC V, 3DC A safety rating
• Designed to work with DMM test leads or banana jack circuit testers
• Tip holds firm in the terminal slot to allow a free hand to jiggle wire or MTTL7008
operate a switch

609
• Do not use in environment with explosive vapor
• Read safety precautions on pages W1 to W4
