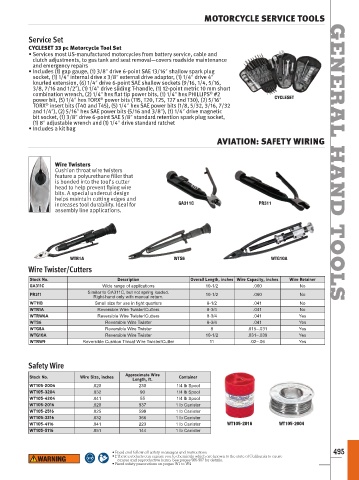

Page 497 - 实耐宝完整US版1500

MOTORCYCLE SERVICE TOOLS

Service Set
CYCLESET 33 pc Motorcycle Tool Set
• Services most US-manufactured motorcycles from battery service, cable and
clutch adjustments, to gas tank and seat removal—covers roadside maintenance
and emergency repairs
• Includes (1) gap gauge, (1) 3/8ʺ drive 6-point SAE 13/16ʺ shallow spark plug
socket, (1) 1/4ʺ internal drive x 3/8ʺ external drive adaptor, (1) 1/4ʺ drive 4ʺ
knurled extension, (6) 1/4ʺ drive 6-point SAE shallow sockets (9/16, 1/4, 5/16, GENERAL
3/8, 7/16 and 1/2ʺ), (1) 1/4ʺ drive sliding T-handle, (1) 12-point metric 10 mm short
combination wrench, (2) 1/4ʺ hex flat tip power bits, (1) 1/4ʺ hex PHILLIPS #2
®
power bit, (5) 1/4ʺ hex TORX power bits (T15, T20, T25, T27 and T30), (2) 5/16ʺ CYCLESET
®
®
TORX insert bits (T40 and T45), (5) 1/4ʺ hex SAE power bits (1/8, 5/32, 3/16, 7/32
and 1/4ʺ), (2) 5/16ʺ hex SAE power bits (5/16 and 3/8ʺ), (1) 1/4ʺ drive magnetic
bit socket, (1) 3/8ʺ drive 6-point SAE 5/8ʺ standard retention spark plug socket,
(1) 8ʺ adjustable wrench and (1) 1/4ʺ drive standard ratchet
• Includes a kit bag
AVIATION: SAFETY WIRING

Wire Twisters
Cushion throat wire twisters
feature a polyurethane filler that
is bonded into the tool’s cutter HAND
head to help prevent flying wire
bits. A special undercut design
helps maintain cutting edges and
increases tool durability. Ideal for GA311C PR311
assembly line applications.

WTR1A WTS6 WTG10A TOOLS
Wire Twister/Cutters
Stock No. Description Overall Length, inches Wire Capacity, inches Wire Retainer
GA311C Wide range of applications 10-1/2 .060 No
Similar to GA311C, but not spring loaded.
PR311 10-1/2 .060 No
Right-hand only with manual return.
WT11B Small size for use in tight quarters 8-1/2 .041 No
WTR1A Reversible Wire Twister/Cutters 8-3/4 .041 No
WTRW6A Reversible Wire Twister/Cutters 8-3/4 .041 Yes
WTS6 Reversible Wire Twister 8-3/4 .041 Yes
WTG8A Reversible Wire Twister 8 .015–.031 Yes
WTG10A Reversible Wire Twister 10-1/2 .031–.039 Yes
WTRW9 Reversible Cushion Throat Wire Twister/Cutter 11 .02–.06 Yes

Safety Wire
Approximate Wire
Stock No. Wire Size, inches Container
Length, ft.
WT105-2004 .020 230 1/4 lb Spool
WT105-3204 .032 90 1/4 lb Spool
WT105-4204 .041 55 1/4 lb Spool
WT105-2016 .020 937 1 lb Canister
WT105-2516 .025 599 1 lb Canister
WT105-3216 .032 366 1 lb Canister
WT105-4116 .041 223 1 lb Canister WT105-2016 WT105-2004
WT105-5116 .051 144 1 lb Canister

• Read and follow all safety messages and instructions 495
• ‡ These products can expose you to chemicals which are known to the state of California to cause
cancer and reproductive harm. See pages 906-907 for details.
• Read safety precautions on pages W1 to W4
