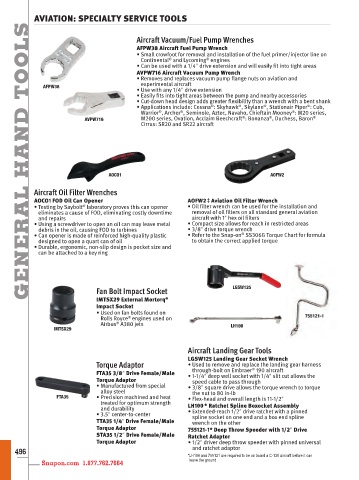

Page 498 - 实耐宝完整US版1500

AVIATION: SPECIALTY SERVICE TOOLS
TOOLS AFPW38 Aircraft Fuel Pump Wrench

Aircraft Vacuum/Fuel Pump Wrenches

• Small crowfoot for removal and installation of the fuel primer/injector line on
®
Continental and Lycoming engines
®
• Can be used with a 1/4ʺ drive extension and will easily fit into tight areas
AVPW716 Aircraft Vacuum Pump Wrench
• Removes and replaces vacuum pump flange nuts on aviation and
experimental aircraft
AFPW38
• Use with any 1/4ʺ drive extension
• Easily fits into tight areas between the pump and nearby accessories
• Cut-down head design adds greater flexibility than a wrench with a bent shank
®
®
• Applications include: Cessna : Skyhawk , Skylane , Stationair Piper : Cub,
®
®
HAND
®
®
Warrior , Archer , Seminole, Aztec, Navaho, Chieftain Mooney : M20 series,
®
®
®
®
M200 series, Ovation, Acclaim Beechcraft : Bonanza , Duchess, Baron
AVPW716
Cirrus: SR20 and SR22 aircraft
AOCO1
GENERAL
Aircraft Oil Filter Wrenches AOFW2
AOCO1 FOD Oil Can Opener AOFW2 ‡ Aviation Oil Filter Wrench
®
• Testing by Saybolt laboratory proves this can opener • Oil filter wrench can be used for the installation and
eliminates a cause of FOD, eliminating costly downtime removal of oil filters on all standard general aviation
and repairs aircraft with 1ʺ hex oil filters
• Using a screwdriver to open an oil can may leave metal • Compact size allows for reach in restricted areas
debris in the oil, causing FOD to turbines • 3/8ʺ drive torque wrench
®
• Can opener is made of reinforced high-quality plastic • Refer to the Snap-on SS306G Torque Chart for formula
designed to open a quart can of oil to obtain the correct applied torque
• Durable, ergonomic, non-slip design is pocket size and
can be attached to a key ring

LGSW125
Fan Bolt Impact Socket
IMTSX29 External Mortorq
®
Impact Socket
• Used on fan bolts found on
®
Rolls Royce engines used on 755121-1
®
Airbus A380 jets LH100
IMTSX29
Aircraft Landing Gear Tools
LGSW125 Landing Gear Socket Wrench
Torque Adaptor • Used to remove and replace the landing gear harness
through-bolt on Embraer 190 aircraft
®
FTA35 3/8ʺ Drive Female/Male • 1-1/4ʺ deep well socket with 1/4ʺ slit cut allows the
Torque Adaptor speed cable to pass through
• Manufactured from special • 3/8ʺ square drive allows the torque wrench to torque
alloy steel the nut to 80 in-lb
FTA35 • Precision machined and heat • Flex-head and overall length is 11-1/2ʺ
treated for optimum strength LH100 * Ratchet Spline Boxocket Assembly
and durability • Extended-reach 1/2ʺ drive ratchet with a pinned
• 3.5ʺ center-to-center spline socket on one end and a box end spline
TTA35 1/4ʺ Drive Female/Male wrench on the other
Torque Adaptor 755121-1* Deep Throw Speeder with 1/2ʺ Drive
STA35 1/2ʺ Drive Female/Male Ratchet Adaptor
Torque Adaptor • 1/2ʺ driver deep throw speeder with pinned universal
and ratchet adaptor
496
* LH100 and 755121 are required to be on board a C-130 aircraft before it can
leave the ground
