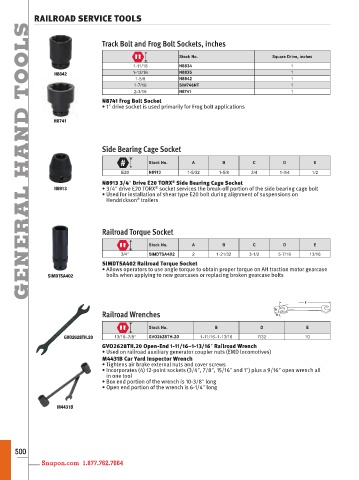

RAILROAD SERVICE TOOLS
TOOLS N8842 Track Bolt and Frog Bolt Sockets, inches Square Drive, inches

Stock No.
1-11/16
1
N8834
1
1-13/16
N8835
1
1-5/8
N8842
1-7/16
2-3/16
N8741
N8741 Frog Bolt Socket SIM746NT 1 1
• 1ʺ drive socket is used primarily for Frog bolt applications
HAND Side Bearing Cage Socket A B C D E
N8741

Stock No.
1-5/32
E20
1-5/8
N8913
N8913 3/4ʺ Drive E20 TORX Side Bearing Cage Socket 3/4 1-3/4 1/2
®
GENERAL
®
N8913 • 3/4ʺ drive E20 TORX socket services the break-off portion of the side bearing cage bolt
• Used for installation of shear type E20 bolt during alignment of suspensions on
®
Hendrickson trailers
Railroad Torque Socket
Stock No. A B C D E
3/4ʺ SIMDTSA402 2 1-21/32 3-1/2 5-7/16 13/16
SIMDTSA402 Railroad Torque Socket
• Allows operators to use angle torque to obtain proper torque on AH traction motor gearcase
SIMDTSA402 bolts when applying to new gearcases or replacing broken gearcase bolts

Railroad Wrenches

Stock No. B D E
GVO2628TH.20 13/16–7/8ʺ GVO2628TH.20 1-11/16–1-13/16 7/32 10
GVO2628TH.20 Open-End 1-11/16–1-13/16ʺ Railroad Wrench
• Used on railroad auxiliary generator coupler nuts (EMD locomotives)
M4431B Car Yard Inspector Wrench
• Tightens air brake external nuts and cover screws
• Incorporates (4) 12-point sockets (3/4ʺ, 7/8ʺ, 15/16ʺ and 1ʺ) plus a 9/16ʺ open wrench all
in one tool
• Box end portion of the wrench is 10-3/8ʺ long
• Open end portion of the wrench is 6-1/4ʺ long

M4431B

500

Snapon.com 1.877.762.7664
