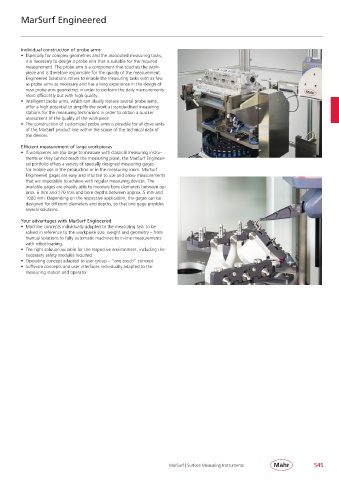

MarSurf Engineered

Individual construction of probe arms
• Especially for complex geometries and the associated measuring tasks,
it is necessary to design a probe arm that is suitable for the required
measurement. The probe arm is a component that touches the work-
piece and is therefore responsible for the quality of the measurement.
Engineered Solutions strives to enable the measuring tasks with as few
as probe arms as necessary and has a long experience in the design of
new probe arm geometries in order to perform the daily measurements
more efficiently but with high quality.
• Intelligent probe arms, which can ideally replace several probe arms,
offer a high potential to simplify the work at standardised measuring
stations for the measuring technicians in order to obtain a quicker
assessment of the quality of the workpiece.
• The construction of customized probe arms is possible for all drive units
of the MarSurf product line within the scope of the technical data of
the devices.

Efficient measurement of large workpieces
• If workpieces are too large to measure with classical measuring instru-
ments or they cannot reach the measuring point, the MarSurf Engineer-
ed portfolio offers a variety of specially designed measuring gages
for mobile use in the production or in the measuring room. MarSurf
Engineered gages are easy and intuitive to use and allow measurements
that are impossible to achieve with regular measuring devices. The
available gages are already able to measure bore diameters between ap-
prox. 6 mm and 170 mm and bore depths between approx. 5 mm and
1000 mm. Depending on the respective application, the gages can be
designed for different diameters and depths, so that one gage provides
several solutions.

Your advantages with MarSurf Engineered
• Machine concepts individually adapted to the measuring task to be
solved in reference to the workpiece size, weight and geometry – from
manual solutions to fully automatic machines to in-line measurements
with robot loading.
• The right solution suitable for the respective environment, including the
necessary safety modules required
• Operating concept adapted to user group – “one-touch” concept
• Software concepts and user interfaces individually adapted to the
measuring station and operator

MarSurf | Surface Measuring Instruments 545
