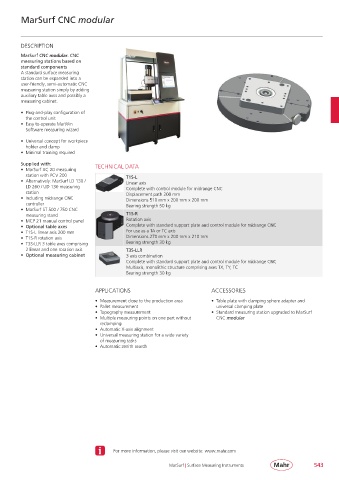

MarSurf CNC modular

DESCRIPTION

MarSurf CNC modular. CNC
measuring stations based on
standard components
A standard surface measuring
station can be expanded into a
user-friendly, semi-automatic CNC
measuring station simply by adding
auxiliary table axes and possibly a
measuring cabinet.
• Plug-and-play configuration of
the control unit
• Easy to operate MarWin
Software measuring wizard
• Universal concept for workpiece
holder and clamp
• Minimal training required
Supplied with: TECHNICAL DATA
• MarSurf XC 20 measuring
sta tion with PCV 200 T1S-L
• Alternatively: MarSurf LD 130 / Linear axis
LD 260 / UD 130 measuring Complete with control module for midrange CNC
station Displacement path 200 mm
• Including midrange CNC Dimensions 510 mm x 200 mm x 200 mm
con troller Bearing strength 50 kg
• MarSurf ST 500 / 750 CNC
measuring stand T1S-R
• MCP 21 manual control panel Rotation axis
• Optional table axes Complete with standard support plate and control module for midrange CNC
• T1S-L linear axis 200 mm For use as a TA or TC axis
• T1S-R rotation axis Dimensions 270 mm x 200 mm x 210 mm
• T3S-LLR 3 table axes comprising Bearing strength 30 kg
2 linear and one rotation axis T3S-LLR
• Optional measuring cabinet 3 axis combination
Complete with standard support plate and control module for midrange CNC
Multiaxis, monolithic structure comprising axes TX, TY, TC
Bearing strength 30 kg

APPLICATIONS ACCESSORIES
• Measurement close to the production area • Table plate with clamping sphere adapter and
• Pallet measurement universal clamping plate
• Topography measurement • Standard measuring station upgraded to MarSurf
• Multiple measuring points on one part without CNC modular
reclamping
• Automatic X-axis alignment
• Universal measuring station for a wide variety
of measuring tasks
• Automatic zenith search

For more information, please visit our website: www.mahr.com

MarSurf | Surface Measuring Instruments 543
