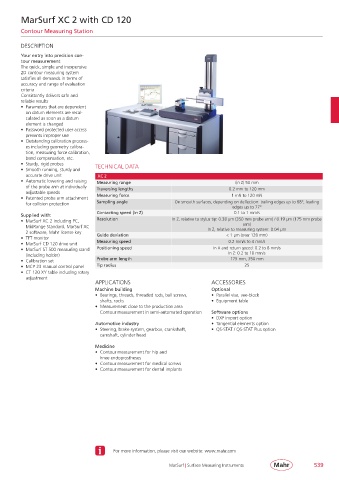

MarSurf XC 2 with CD 120

Contour Measuring Station

DESCRIPTION

Your entry into precision con-
tour measurement
The quick, simple and inexpen sive
2D contour measuring system
satisfies all demands in terms of
accuracy and range of evaluation
criteria
Consistently delivers safe and
reliable results
• Parameters that are dependent
on datum elements are recal-
culated as soon as a datum
element is changed
• Password protected user access
prevents improper use
• Outstanding calibration process-
es including geometry calibra-
tion, measuring force calibration,
bend compensation, etc.
• Sturdy, rigid probes TECHNICAL DATA
• Smooth running, sturdy and
accurate drive unit XC 2
• Automatic lowering and raising Measuring range (in Z) 50 mm
of the probe arm at individually Traversing lengths 0.2 mm to 120 mm
adjustable speeds
• Patented probe arm attachment Measuring force 1 mN to 120 mN
for collision protection Sampling angle On smooth surfaces, depending on deflection: trailing edges up to 88°, leading
edges up to 77°
Contacting speed (in Z) 0.1 to 1 mm/s
Supplied with:
• MarSurf XC 2 including PC, Resolution In Z, relative to stylus tip: 0.38 µm (350 mm probe arm) / 0.19 µm (175 mm probe
arm)
MidRange Standard, MarSurf XC In Z, relative to measuring system: 0.04 µm
2 software, Mahr license key
• TFT monitor Guide deviation < 1 µm (over 120 mm)
• MarSurf CD 120 drive unit Measuring speed 0.2 mm/s to 4 mm/s
• MarSurf ST 500 measuring stand Positioning speed In X and return speed: 0.2 to 8 mm/s
(including holder) In Z: 0.2 to 10 mm/s
• Calibration set Probe arm length 175 mm, 350 mm
• MCP 23 manual control panel Tip radius 25
• CT 120 XY table including rotary
adjustment
APPLICATIONS ACCESSORIES
Machine building Optional
• Bearings, threads, threaded rods, ball screws, • Parallel vise, vee-block
shafts, racks • Equipment table
• Measurement close to the production area
Contour measurement in semi-automated operation Software options
• DXF import option
Automotive industry • Tangential elements option
• Steering, brake system, gearbox, crankshaft, • QS-STAT / QS-STAT Plus option
camshaft, cylinder head
Medicine
• Contour measurement for hip and
knee endopros theses
• Contour measurement for medical screws
• Contour measurement for dental implants

For more information, please visit our website: www.mahr.com

MarSurf | Surface Measuring Instruments 539
