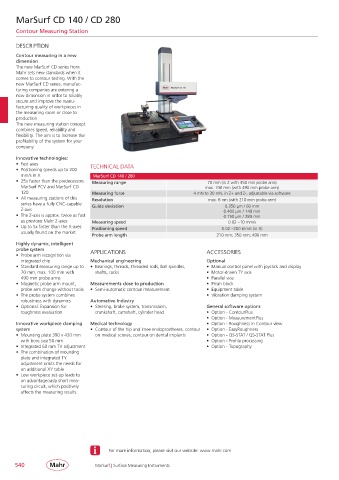

MarSurf CD 140 / CD 280

Contour Measuring Station

DESCRIPTION

Contour measuring in a new
dimension
The new MarSurf CD series from
Mahr sets new standards when it
comes to contour testing. With the
new MarSurf CD series, manufac-
turing companies are entering a
new dimension in order to reliably
secure and improve the manu-
facturing quality of workpieces in
the measuring room or close to
production.
The new measuring station concept
combines speed, reliability and
flexibility. The aim is to increase the
profitability of the system for your
company.
Innovative technologies:
• Fast axes TECHNICAL DATA
• Positioning speeds up to 200
mm/s in X MarSurf CD 140 / 280
• 25x faster than the predecessors Measuring range 70 mm (in Z with 350 mm probe arm)
MarSurf PCV and MarSurf CD max. 100 mm (with 490 mm probe arm)
120 Measuring force 4 mN to 30 mN, in Z+ and Z-, adjustable via software
• All measuring stations of this Resolution max. 6 nm (with 210 mm probe arm)
series have a fully CNC-capable Guide deviation 0.350 µm / 60 mm
Z-axis 0.400 µm / 140 mm
• The Z-axis is approx. twice as fast 0.750 µm / 280 mm
as previous Mahr Z-axes Measuring speed 0.02 – 10 mm/s
• Up to 5x faster than the X-axes Positioning speed 0.02 – 200 mm/s (in X)
usually found on the market
Probe arm length 210 mm; 350 mm; 490 mm
Highly dynamic, intelligent
probe system APPLICATIONS ACCESSORIES
• Probe arm recognition via
integrated chip Mechanical engineering Optional
• Standard measuring range up to • Bearings, threads, threaded rods, ball spindles, • Manual control panel with joystick and display
70 mm; max. 100 mm with shafts, racks • Motor-driven TY axis
490 mm probe arms • Parallel vice
• Magnetic probe arm mount, Measurements close to production • Prism block
probe arm change without tools • Semi-automatic contour measurement • Equipment table
• The probe system combines • Vibration damping system
robustness with dynamics Automative Industry
• Optional: Expansion for • Steering, brake system, transmission, General software options
roughness evaluation crankshaft, camshaft, cylinder head • Option - ContourPlus
• Option - MeasurementPlus
Innovative workpiece clamping Medical technology • Option - Roughness in Contour view
system • Contour of the hip and knee endoprostheses, contour • Option - EasyRoughness
• Mounting plate 390 x 430 mm on medical screws, contour on dental implants • Option - QS-STAT / QS-STAT Plus
with bore size 50 mm • Option - Profile processing
• Integrated 60 mm TY adjustment • Option - Topography
• The combination of mounting
plate and integrated TY
adjustment omits the needs for
an additional XY table
• Low workpiece set-up leads to
an advantageously short mea-
suring circuit, which positively
affects the measuring results

For more information, please visit our website: www.mahr.com
