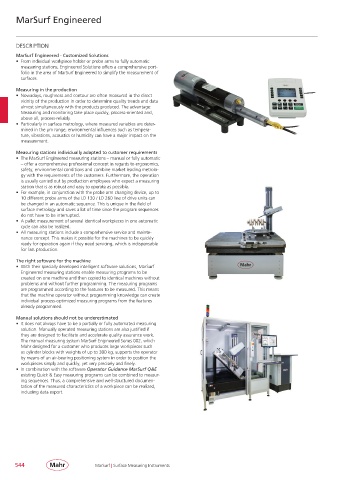

MarSurf Engineered

DESCRIPTION

MarSurf Engineered - Customized Solutions
• From individual workpiece holder or probe arms to fully automatic
measuring stations, Engineered Solutions offers a comprehensive port-
folio in the area of MarSurf Engineered to simplify the measurement of
surfaces.
Measuring in the production
• Nowadays, roughness and contour are often measured in the direct
vicinity of the production in order to determine quality trends and data
almost simultaneously with the products produced. The advantage:
Measuring and monitoring take place quickly, process-oriented and,
above all, process-reliably.
• Particularly in surface metrology, where measured variables are deter-
mined in the μm range, environmental influences such as tempera-
ture, vibrations, acoustics or humidity can have a major impact on the
measurement.

Measuring stations individually adapted to customer requirements
• The MarSurf Engineered measuring stations – manual or fully automatic
– offer a comprehensive professional concept in regards to ergonomics,
safety, environmental conditions and combine market leading metrolo-
gy with the requirements of the customers. Furthermore, the operation
is usually carried out by production employees who expect a measuring
station that is as robust and easy to operate as possible.
• For example, in conjunction with the probe arm changing device, up to
10 different probe arms of the LD 130 / LD 260 line of drive units can
be changed in an automatic sequence. This is unique in the field of
surface metrology and saves a lot of time since the program sequences
do not have to be interrupted.
• A pallet measurement of several identical workpieces in one automatic
cycle can also be realized.
• All measuring stations include a comprehensive service and mainte-
nance concept. This makes it possible for the machines to be quickly
ready for operation again if they need servicing, which is indispensable
for fast production.

The right software for the machine
• With their specially developed intelligent software solutions, MarSurf
Engineered measuring stations enable measuring programs to be
created on one machine and then copied to identical machines without
problems and without further programming. The measuring programs
are programmed according to the features to be measured. This means
that the machine operator without programming knowledge can create
individual process-optimized measuring programs from the features
already programmed.
Manual solutions should not be underestimated
• It does not always have to be a partially or fully automated measuring
solution. Manually operated measuring stations are also justified if
they are designed to facilitate and accelerate quality assurance work.
The manual measuring system MarSurf Engineered Series 002, which
Mahr designed for a customer who produces large workpieces such
as cylinder blocks with weights of up to 300 kg, supports the operator
by means of an air-bearing positioning system in order to position the
workpieces simply and quickly, yet very precisely and finely.
• In combination with the software Operator Guidance MarSurf Q&E
existing Quick & Easy measuring programs can be combined to measur-
ing sequences. Thus, a comprehensive and well-structured documen-
tation of the measured characteristics of a workpiece can be realized,
including data export.
