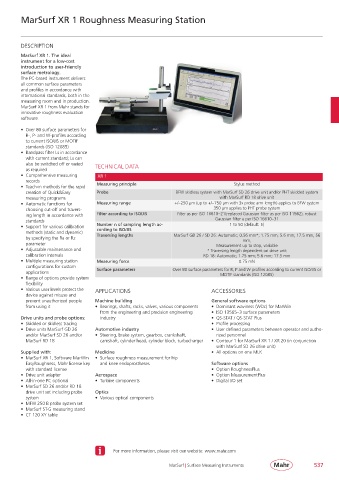

MarSurf XR 1 Roughness Measuring Station

DESCRIPTION

MarSurf XR 1. The ideal
in strument for a low-cost
introduction to user-friendly
surface metrology.
The PC-based instrument delivers
all common surface parameters
and profiles in accordance with
international standards, both in the
measuring room and in production.
MarSurf XR 1 from Mahr stands for
innovative rough ness evaluation
software.

• Over 80 surface parameters for
R-, P- and W-profiles according
to current ISO/JIS or MOTIF
standards (ISO 12085)
• Bandpass filter Ls in accordance
with current standard; Ls can
also be switched off or varied TECHNICAL DATA
as required
• Comprehensive measuring XR 1
records
• Teach-in methods for the rapid Measuring principle Stylus method
creation of Quick&Easy Probe BFW skidless system with MarSurf SD 26 drive unit and/or PHT skidded system
mea suring programs with MarSurf RD 18 drive unit
• Automatic functions for Measuring range +/– 250 µm (up to +/– 750 µm with 3x probe arm length) applies to BFW system
choosing cut-off and travers- 350 µm applies to PHT probe system
ing length in accordance with Filter according to ISO/JIS filter as per ISO 16610– 21(replaced Gaussian filter as per ISO 11562), robust
standards Gaussian filter a per ISO 16610– 31
• Support for various calibration Number n of sampling length ac- 1 to 50 (default: 5)
cording to ISO/JIS
methods (static and dynamic) Traversing lengths MarSurf GD 26 / SD 26: Automatic; 0.56 mm*; 1.75 mm; 5.6 mm; 17.5 mm, 56
by specifying the Ra or Rz mm,
parameter Measurement up to stop, variable
• Adjustable maintenance and * Traversing length dependent on drive unit
calibration intervals RD 18: Automatic; 1.75 mm; 5.6 mm; 17.5 mm
• Multiple measuring station Measuring force 0.75 mN
con fig urations for custom Surface parameters Over 80 surface parameters for R, P and W profiles according to current ISO/JIS or
applications MOTIF standards (ISO 12085)
• Range of options provide system
flexibility
• Various user levels protect the APPLICATIONS ACCESSORIES
device against misuse and
prevent unauthorized people Machine building General software options
from using it • Bearings, shafts, racks, valves, various components • Dominant waviness (WDc) for MarWin
from the engineering and precision engineering • ISO 13565– 3 surface parameters
Drive units and probe options: industry • QS-STAT / QS-STAT Plus
• Skidded or skidless tracing • Profile processing
• Drive units MarSurf GD 26 Automotive industry • User defined parameters between operator and autho-
and/or MarSurf SD 26 and/or • Steering, brake system, gearbox, crankshaft, rized personnel
MarSurf RD 18 camshaft, cylinder head, cylinder block, turbocharger • Contour 1 for MarSurf XR 1 / XR 20 (in conjunction
with MarSurf SD 26 drive unit)
Supplied with: Medicine • All options on one MLK
• MarSurf XR 1, Software MarWin • Surface roughness measurement for hip
EasyRoughness, Mahr license key and knee endoprostheses Software options
with standard license • Option RoughnessPlus
• Drive unit adapter Aerospace • Option MeasurementPlus
• All-in-one PC optional • Turbine components • Digital I/O set
• MarSurf SD 26 and/or RD 18
drive unit set including probe Optics
system • Various optical components
• MFW 250 B probe system set
• MarSurf ST-G measuring stand
• CT 120 XY table

For more information, please visit our website: www.mahr.com
