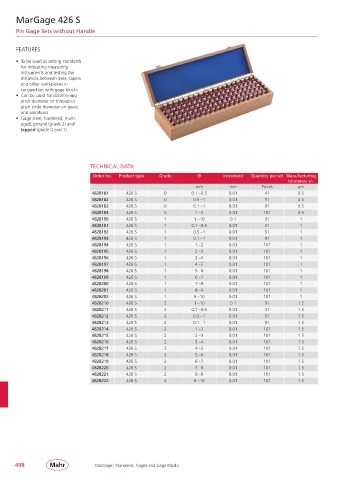

MarGage 426 S

Pin Gage Sets without Handle

FEATURES

• To be used as setting standards
for indicating measuring
instruments and testing the
distances between axes, tapers
and other workpieces in
conjunction with gage blocks
• Can be used for determining
pitch diameter of threads or
pitch circle diameter on gears
and serrations
• Gage steel, hardened, multi-
aged, ground (grade 2) and
lapped (grade 0 and 1)

TECHNICAL DATA
Order no. Product type Grade Ø Increment Quantity per set Manufacturing
tolerance +/–
mm mm Pieces µm
4828181 426 S 0 0.1 – 0.5 0.01 41 0.5
4828182 426 S 0 0.5 – 1 0.01 51 0.5
4828183 426 S 0 0.1 – 1 0.01 91 0.5
4828184 426 S 0 1 – 2 0.01 101 0.5
4828190 426 S 1 1 – 10 0.1 91 1
4828191 426 S 1 0.1 – 0.5 0.01 41 1
4828192 426 S 1 0.5 – 1 0.01 51 1
4828193 426 S 1 0.1 – 1 0.01 91 1
4828194 426 S 1 1 – 2 0.01 101 1
4828195 426 S 1 2 – 3 0.01 101 1
4828196 426 S 1 3 – 4 0.01 101 1
4828197 426 S 1 4 – 5 0.01 101 1
4828198 426 S 1 5 – 6 0.01 101 1
4828199 426 S 1 6 – 7 0.01 101 1
4828200 426 S 1 7 – 8 0.01 101 1
4828201 426 S 1 8 – 9 0.01 101 1
4828202 426 S 1 9 – 10 0.01 101 1
4828210 426 S 2 1 – 10 0.1 91 1.5
4828211 426 S 2 0.1 – 0.5 0.01 41 1.5
4828212 426 S 2 0.5 – 1 0.01 51 1.5
4828213 426 S 2 0.1 – 1 0.01 91 1.5
4828214 426 S 2 1 – 2 0.01 101 1.5
4828215 426 S 2 2 – 3 0.01 101 1.5
4828216 426 S 2 3 – 4 0.01 101 1.5
4828217 426 S 2 4 – 5 0.01 101 1.5
4828218 426 S 2 5 – 6 0.01 101 1.5
4828219 426 S 2 6 – 7 0.01 101 1.5
4828220 426 S 2 7 – 8 0.01 101 1.5
4828221 426 S 2 8 – 9 0.01 101 1.5
4828222 426 S 2 9 – 10 0.01 101 1.5
