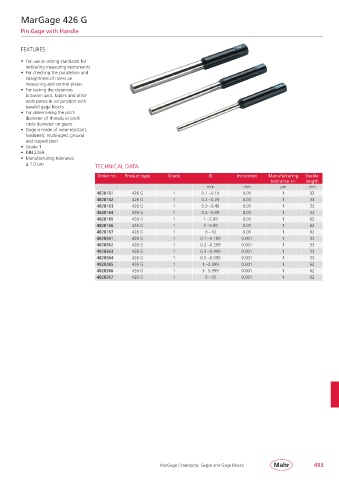

MarGage 426 G

Pin Gage with Handle

FEATURES

• For use as setting standards for
indicating measuring instruments
• For checking the parallelism and
straightness of rulers on
measuring and control plates
• For testing the distances
between axes, tapers and other
workpieces in conjunction with
parallel gage blocks
• For determining the pitch
diameter of threads or pitch
circle diameter on gears.
• Gage is made of wear-resistant,
hardened, multi-aged, ground
and lapped steel
• Grade 1
• DIN 2269
• Manufacturing tolerance
± 1.0 µm
TECHNICAL DATA
Order no. Product type Grade Ø Increment Manufacturing Usable
tolerance +/– length
mm mm µm mm
4828161 426 G 1 0.1 – 0.19 0.01 1 33
4828162 426 G 1 0.2 – 0.29 0.01 1 33
4828163 426 G 1 0.3 – 0.49 0.01 1 33
4828164 426 G 1 0.5 – 0.99 0.01 1 33
4828165 426 G 1 1 – 2.99 0.01 1 62
4828166 426 G 1 3 – 5.99 0.01 1 62
4828167 426 G 1 6 – 10 0.01 1 62
4828361 426 G 1 0.1 – 0.199 0.001 1 33
4828362 426 G 1 0.2 – 0.299 0.001 1 33
4828363 426 G 1 0.3 – 0.499 0.001 1 33
4828364 426 G 1 0.5 – 0.999 0.001 1 33
4828365 426 G 1 1 – 2.999 0.001 1 62
4828366 426 G 1 3 – 5.999 0.001 1 62
4828367 426 G 1 6 – 10 0.001 1 62

MarGage | Standards, Gages and Gage Blocks 493
