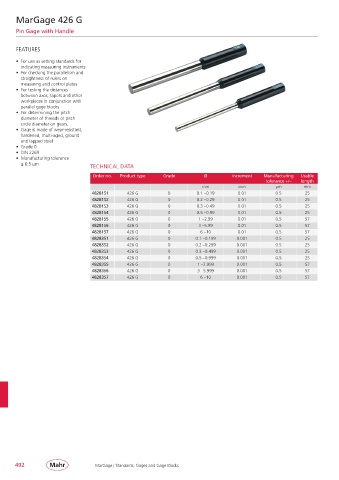

MarGage 426 G

Pin Gage with Handle

FEATURES

• For use as setting standards for
indicating measuring instruments
• For checking the parallelism and
straightness of rulers on
measuring and control plates
• For testing the distances
between axes, tapers and other
workpieces in conjunction with
parallel gage blocks
• For determining the pitch
diameter of threads or pitch
circle diameter on gears.
• Gage is made of wear-resistant,
hardened, multi-aged, ground
and lapped steel
• Grade 0
• DIN 2269
• Manufacturing tolerance
± 0.5 µm
TECHNICAL DATA
Order no. Product type Grade Ø Increment Manufacturing Usable
tolerance +/– length
mm mm µm mm
4828151 426 G 0 0.1 – 0.19 0.01 0.5 25
4828152 426 G 0 0.2 – 0.29 0.01 0.5 25
4828153 426 G 0 0.3 – 0.49 0.01 0.5 25
4828154 426 G 0 0.5 – 0.99 0.01 0.5 25
4828155 426 G 0 1 – 2.99 0.01 0.5 57
4828156 426 G 0 3 – 5.99 0.01 0.5 57
4828157 426 G 0 6 – 10 0.01 0.5 57
4828351 426 G 0 0.1 – 0.199 0.001 0.5 25
4828352 426 G 0 0.2 – 0.299 0.001 0.5 25
4828353 426 G 0 0.3 – 0.499 0.001 0.5 25
4828354 426 G 0 0.5 – 0.999 0.001 0.5 25
4828355 426 G 0 1 – 2.999 0.001 0.5 57
4828356 426 G 0 3 – 5.999 0.001 0.5 57
4828357 426 G 0 6 – 10 0.001 0.5 57
