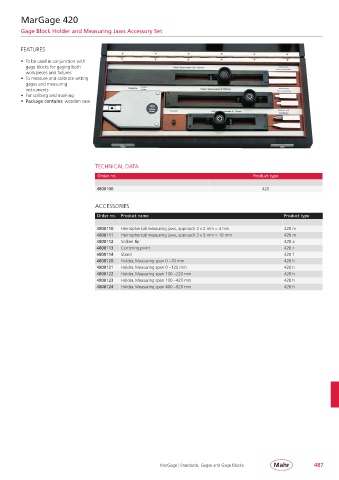

MarGage 420
Gage Block Holder and Measuring Jaws Accessory Set
FEATURES
• To be used in conjunction with
gage blocks for gaging both
workpieces and fixtures
• To measure and calibrate setting
gages and measuring
instruments
• For scribing and marking
• Package contains: wooden case
TECHNICAL DATA
Order no. Product type
4800100 420
ACCESSORIES
Order no. Product name Product type
4800110 Hemispherical measuring jaws, approach 2 x 2 mm = 4 mm 420 m
4800111 Hemispherical measuring jaws, approach 2 x 5 mm = 10 mm 420 m
4800112 Scriber tip 420 a
4800113 Centering point 420 z
4800114 Stand 420 f
4800120 Holder, Measuring span 0 – 70 mm 420 h
4800121 Holder, Measuring span 0 – 120 mm 420 h
4800122 Holder, Measuring span 100 – 220 mm 420 h
4800123 Holder, Measuring span 100 – 420 mm 420 h
4800124 Holder, Measuring span 400 – 820 mm 420 h
MarGage | Standards, Gages and Gage Blocks 487
