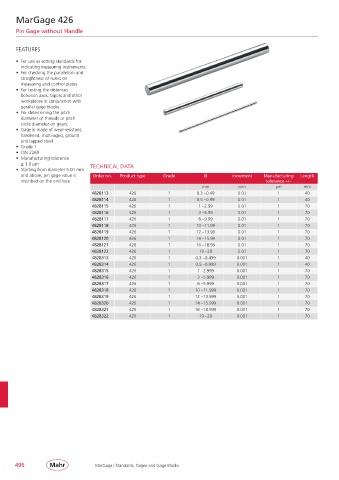

MarGage 426

Pin Gage without Handle

FEATURES

• For use as setting standards for
indicating measuring instruments
• For checking the parallelism and
straightness of rulers on
measuring and control plates
• For testing the distances
between axes, tapers and other
workpieces in conjunction with
parallel gage blocks
• For determining the pitch
diameter of threads or pitch
circle diameter on gears.
• Gage is made of wear-resistant,
hardened, multi-aged, ground
and lapped steel
• Grade 1
• DIN 2269
• Manufacturing tolerance
± 1.0 µm TECHNICAL DATA
• Starting from diameter 5.01 mm
and above, pin gage value is Order no. Product type Grade Ø Increment Manufacturing Length
inscribed on the end face tolerance +/–
mm mm µm mm
4828113 426 1 0.3 – 0.49 0.01 1 40
4828114 426 1 0.5 – 0.99 0.01 1 40
4828115 426 1 1 – 2.99 0.01 1 70
4828116 426 1 3 – 5.99 0.01 1 70
4828117 426 1 6 – 9.99 0.01 1 70
4828118 426 1 10 – 11.99 0.01 1 70
4828119 426 1 12 – 13.99 0.01 1 70
4828120 426 1 14 – 15.99 0.01 1 70
4828121 426 1 16 – 18.99 0.01 1 70
4828122 426 1 19 – 20 0.01 1 70
4828313 426 1 0.3 – 0.499 0.001 1 40
4828314 426 1 0.5 – 0.999 0.001 1 40
4828315 426 1 1 – 2.999 0.001 1 70
4828316 426 1 3 – 5.999 0.001 1 70
4828317 426 1 6 – 9.999 0.001 1 70
4828318 426 1 10 – 11.999 0.001 1 70
4828319 426 1 12 – 13.999 0.001 1 70
4828320 426 1 14 – 15.999 0.001 1 70
4828321 426 1 16 – 18.999 0.001 1 70
4828322 426 1 19 – 20 0.001 1 70

496 MarGage | Standards, Gages and Gage Blocks
